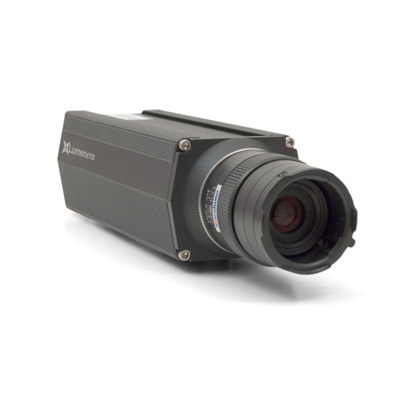

Lumenera's NEW Li045 - Intelligent Network Camera

Product Profile

Featuring on-board video analytics, ultra-wide dynamic range (120+dB) and both MJPEG and H.264 compression, Lumenera's Li045 series of intelligent network cameras are targeted solutions for security applications requiring high quality, progressive scan images such as homeland security, transportation, banking, education and retail.

Enabled with ObjectVideo OnBoard - Lumenera's intelligent camera series are providing real-time video analytics at the camera head.  The Li045 provides detailed monitoring of the scene, allowing the surveillance operator to make more proactive decisions and providing the opportunity to interrupt a crime or attack while in progress even in the most difficult lighting situations.

Streaming full D1 (720x480) resolution at 30 frames per second, these cameras deliver outstanding picture quality and performance.  Adjustable MJPEG and H.264 compressed still-images or live streaming video, are provided across a standard 10/100BaseT network interface.  Other features include: I/O connector, 2-way audio over IP; straight forward plug-and-play process; intuitive user interface viewed with most browsers for standard camera control; auto white balance and auto exposure; and multiple motion detection zones.

Programmable day/night settings automatically switch to enhanced low-light mode.  The optional true day/night module provides automatic sliding IR cut filter.  When integrated with NIR illuminators, it provides outstanding low light performance.

On-board memory buffers supply still images that precede and follow alarm events.  Transfer of images via e-mail, FTP, RTP or HTTP.

Li045 Camera Highlights:

  • Intelligent camera enabled with ObjectVideo OnBoard video analytics
  • Ultra-wide dynamic range sensor 102dB (typical), 120dB (max)
  • MJPEG or H.264 compression
  • Optional true day/night functionality
  • Easy set-up and installation
  • 540 lines of resolution, colour, progressive scan, 720x540 pixel sensor
Read more

Technical Specification

Make Lumenera
Manufacturer Lumenera Corporation
Model code Li045
Chip Inch Size 1/3
Colour Type Colour / Monochrome
Resolution 720 x 480
Digital (DSP) Yes
Sensitivity Lux 0.5 @ F1.0
Auto Iris Yes
Direct Drive Yes
Lens Mount C/CS
Electrical Specifications Voltage: 24 VDC
Power Consumption: 6 W
Motion Activated Yes
Mount Type Wall, ceiling
Wide Dynamic Range Yes
Picture Elements HxV 720 x 480
Network Properties Image Frame Rate: 25 / 30 fps
Interface: 10/100baseT Ethernet, RJ45
Network Protocols: HTTP, FTP, RTP or Email
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Signal Mode PAL / NTSC
Compression Type MJPEG, H.264
Physical Specifications Weight g: 300
Dimensions mm: 48.25 x 57 x 152.4
Environmental Specifications Operating Temperature oC: -10 ~ +50
Operating Humidity %: 5 ~ 95
System Requirements Operating System: Windows 98SE/ME/2K/NT/XP, Linux, MAC
Additional info

The I/O connector provides an interface to an external alarm sensor or control of peripheral equipment such as; IR lighting, DC iris and PTZ.  Alarm notification provides the date, time and camera IP address.  Model Li045 is a small compact form factor for fitting into outdoor housings, domes and PTZ systems.
