LILIN NDR-75-24 Power supply & battery Specifications

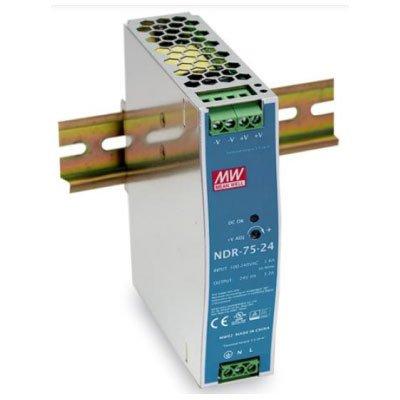

LILIN NDR-75-24 75W single output industrial DIN rail power supply

Technical Specification

Features:

Make: LILIN
Model code: NDR-75-24
Input Voltage: 90 ~ 264 V AC / 127 ~ 370 V DC
Output Voltage: 24 V
No of Outputs: 1

Additional info:

Universal AC input / Full range EN61000-6-2 (EN50082-2) industrial immunity level Protections: Short circuit / Overload / Over voltage / Over temperature Cooling by free air convection Can be installed on DIN rail TS-35/7.5 or 15 100% full load burn-in test

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	LILIN
Manufacturer	LILIN
Category	CCTV>Power supplies & batteries
Model code	NDR-75-24
Input Voltage	90 ~ 264 V AC / 127 ~ 370 V DC
Output Voltage	24 V
No of Outputs	1
Power Consumption	76.8 W
Power Supplies & Batteries	Yes
Environmental Specifications	Operating Temperature C: -20 ~ 70 C (-4 ~ 158 F) Operating Humidity %: 20 ~ 95
Physical Specifications	Dimension mm: 32 x 125 x 102
Download PDF version Download PDF version

Make

LILIN

Manufacturer

LILIN

LILIN NDR-75-24 Industrial DIN Rail Power Supply

The LILIN NDR-75-24 is an economical, slim 75W power supply engineered for industrial use. Designed to fit onto DIN rails TS-35/7.5 or TS-35/15, its compact 32mm width conserves valuable space in control cabinets. This versatile power supply supports a wide AC input range from 90VAC to 264VAC and complies with the European Union's EN61000-3-2 standards for harmonic current.

Encased in a robust metal housing, the NDR-75-24 ensures optimal power dissipation and delivers exceptional performance with an efficiency of up to 89%. Operating efficiently in temperatures ranging from -20℃ to 70℃, it remains reliable under diverse environmental conditions. Integrated protections, including overload and short circuit protection, safeguard against operational faults, making it ideal for a variety of inductive and capacitive applications.

Universal AC input with a wide range
Compliance with industry immunity levels EN61000-6-2 (EN50082-2)
Comprehensive protection features: short circuit, overload, over voltage, and over temperature
Effective cooling through free air convection
100% full load burn-in test

Ideal Use Cases

The LILIN NDR-75-24 power supply is perfectly suited for industrial control systems requiring reliable and efficient performance. With safety approvals like UL508 and TUV EN60950-1, it meets stringent standards, ensuring robustness and safety in challenging environments.
