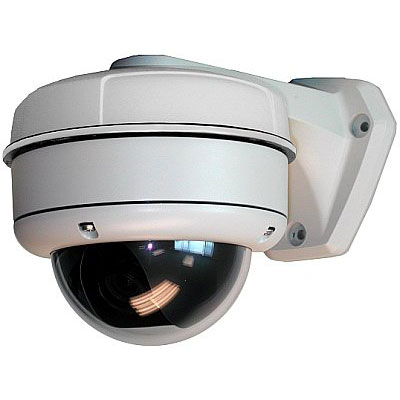

Honeywell Video Systems HD4D3X dome camera

Technical Specification

Features:
  • Make: Honeywell Security
  • Model code: HD4D3X
  • Chip Inch Size: 1/3
  • Colour Type: Colour / Monochrome
  • Resolution TVL: 540
Read more
Additional info:

Vandal resistant aluminium alloy housing and a scratch-resistant polycarbonate dome cover.  Privacy image masking with 4 programmable zones.  Accessories include optional wall bracket (HD4-WK).

Read more
Make Honeywell Security
Manufacturer Honeywell
Model code HD4D3X
Chip Inch Size 1/3
Colour Type Colour / Monochrome
Resolution TVL 540
Sensitivity lux 0.03
Dome Type Continuous Rotation
Indoor/Outdoor Indoor/Outdoor
Mount Type Wall
Electrical Specifications Voltage: 12 VDC / 24 VAC
Power Consumption: 4.8 W
Focal length 3.3 ~ 12
Rotation Angleso 360 Pan, 90 Tilt
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1/50 ~ 1/120,000
S/ N (Signal/ Noise) Ratio dB >50
Signal Mode PAL
Built-in IR LED Yes
Video Output 1.0 Vp-p, composite @ 75 Ohms
Physical Specifications Dimensions mm: 140 (dia) x 30 x 92
Weight g: 1,100
Environmental Specifications Operating Temp oC: -25 ~ +55
Operating Humidity %: 0 ~ 95
Protection: IP66
Additional info Vandal resistant aluminium alloy housing and a scratch-resistant polycarbonate dome cover.  Privacy image masking with 4 programmable zones.  Accessories include optional wall bracket (HD4-WK).
