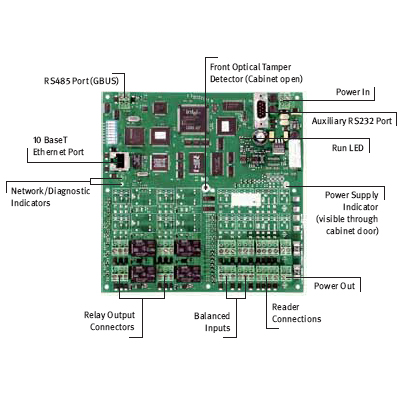

Gallagher 3000-4R access control controller
Technical Specification
- Make: Gallagher
- Model code: 3000-4R
- Series: 3000 Series
- Controller Type: Networkable
- Max No. of Doors per Controller: 4
Linking with the Gallagher Command centre, the Gallagher Controller 3000 provides distributed intelligence in the Gallagher system, managing access control and security functions in the field.
Read more| Make | Gallagher |
|---|---|
| Manufacturer | Gallagher Security (Europe) Ltd |
| Category | Access Control>Access control controllers |
| Model code | 3000-4R |
| Controller Type | Networkable |
| Max No. of Doors per Controller | 4 |
| No of Cardholders | 5,000 ~ 46,000 |
| Networkable | Yes |
| Communication Type | 10 Megabit/Ethernet TCP/IP |
| Onboard No/Type of Inputs / Outputs | 8 in, 4 out |
| Universal / Wiegand Reader Interface | Yes |
| Dial-up Functionality | Yes |
| Electrical Specifications |
Voltage: 13.6 V DC Power Consumption: 400 mA |
| Physical Specifications |
Dimensions mm: 113 x 44 Weight g: 600 |
| Environmental Specifications | Operating Temp oC: -10 ~ +55 |
| Additional info |
Linking with the Gallagher Command centre, the Gallagher Controller 3000 provides distributed intelligence in the Gallagher system, managing access control and security functions in the field. |
