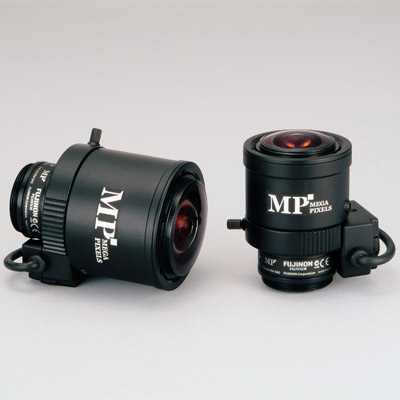

Fujinon YV3.3x15HR4A-SA2L 3 megapixel day/night varifocal lens

Product Profile

Fujinon introduces new lenses to complement the line-up of 3 megapixel varifocal lenses:

YV2.1x2.8SR4A-2/SA2, designed for day/night operation.

DV10x8SA-1/-SA1, long focal length for 1/2".

The YV2.1x2.8SR4A for 1/3" sensors offers both: high resolution of 3 megapixel and Fujinon´s day/night technology for the use with day/night cameras.

With a focal length range of 2.8 to 6mm, an aperture range of F1.3 to T360 and a 101-degree horizontal angle of view at the wide end (2.8mm), the light weight and compact design makes the YV2.1x2.8SR4A ideal for use in outdoor domes and other outdoor applications requiring a light, compact lens.

The whole product range of megapixel day/night varifocal lenses from Fujinon contains 3 models:

YV2.1x2.8SR4A-2/SA2: 2.8-6mm, F1.3, 1/3", CS Mount, high resolution of 3 MP

YV3.3x15HR4A-SA2: 15 - 50mm, F1.5, 1/3", CS Mount, resolution 1.3 MP

YV10x5HR4A-SA2: 5-50mm, F1.6, 1/3", CS Mount, resolution 1.3MP

To meet all the customers' needs for megapixel 1/2" formats, Fujinon now comes up with a second model of the 3 megapixel 1/2" varifocal lenses.

The DV10x8SA offers a focal length range of 8 to 80mm without compromising an aperture range of F1.4 to T360 and is therefore best suitable for applications that require a greater objec distance between the camera and the lens.

Locking screws for zoom and focus, metal mounts and Fujinon´s proprietary "AT" aspherical technology are standard features of the varifocal lenses as well as the option to choose between manual iris and auto iris function (DC iris).

Read more

Technical Specification

Make Fujinon
Manufacturer FUJIFILM Optical Devices Europe GmbH
Model code YV3.3x15HR4A-SA2L
Zoom type Manual
Focal Length mm 15~50
Lens Mount CS
F-Stop F1.4 ~ T360
Zoom Ratio 3.3:1
Angle (Field) of View o Wide: 18 08 x 13 34, Tele: 05 35 x 04 12
Minimum Object Distance m 0.3
Physical Specifications Dimensions mm: Wide: 271 x 202, Tele: 87 x 66
Weight g: 60
Electrical Specifications Voltage: 4 V DC
Power Consumption: 23mA
Varifocal Yes
Additional info

Also available for 1/4" cameras. Manual operation focus.
