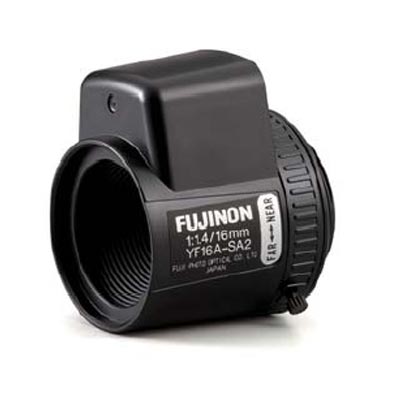

Fujinon YF16A-SA2B CCTV camera lens

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Features:

Make: Fujinon
Model code: YF16A-SA2B
Lens Format inches: 1/3 inch
Focal Length mm: 16 mm focal length
Iris Type: Auto Iris

Additional info:

Telephoto lens with the horizontal field angle of approximately 17 degrees. Built-in ND filter of T360, supporting super sensitive cameras. Wide aperture of F1.4, optimizing the performance at low lighting intensity.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Fujinon
Manufacturer	FUJIFILM Optical Devices Europe GmbH
Category	CCTV>CCTV camera lenses
Model code	YF16A-SA2B
Lens Format inches	1/3 inch
Focal Length mm	16 mm focal length
Iris Type	Auto Iris
Lens Mount	CS mount
F-Stop	1.4 F-stop
Direct Drive	Yes
Physical Specifications	Dimensions mm: 32 (Dia) x 35 Weight g: 35
Additional info	Telephoto lens with the horizontal field angle of approximately 17 degrees. Built-in ND filter of T360, supporting super sensitive cameras. Wide aperture of F1.4, optimizing the performance at low lighting intensity.
