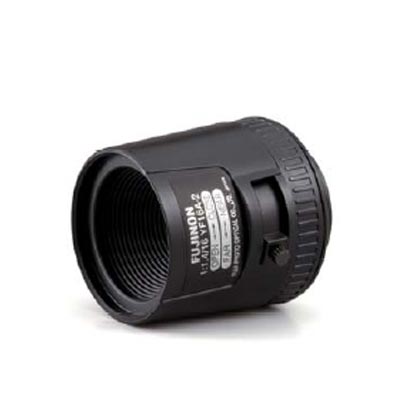

Fujinon YF16A-2 CCTV camera lens

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Features:

Make: Fujinon
Model code: YF16A-2
Lens Format inches: 1/3 inch
Focal Length mm: 16 mm focal length
Iris Type: Manual Iris

Additional info:

Telephoto lens with the horizontal field angle of approximately 17 degrees. Compact and lightweight design of 25g, best suited for built-in lenses. Wide aperture of F1.4, optimizing the performance at low lighting intensity.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Fujinon
Manufacturer	FUJIFILM Optical Devices Europe GmbH
Category	CCTV>CCTV camera lenses
Model code	YF16A-2
Lens Format inches	1/3 inch
Focal Length mm	16 mm focal length
Iris Type	Manual Iris
Lens Mount	CS mount
F-Stop	1.4 F-stop
Physical Specifications	Dimensions mm: 32 (Dia) x 35 Weight g: 25
Additional info	Telephoto lens with the horizontal field angle of approximately 17 degrees. Compact and lightweight design of 25g, best suited for built-in lenses. Wide aperture of F1.4, optimizing the performance at low lighting intensity.
