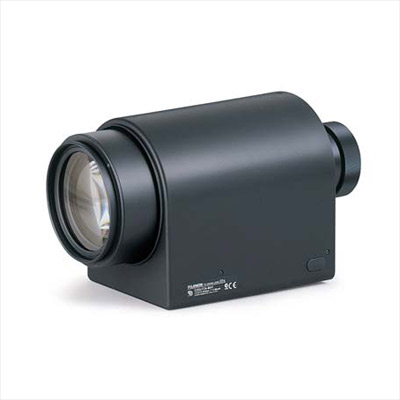

Fujinon C22x23A-M41 - high power telephoto zoom lens for remote surveillance

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Fujinon C22x23A-M41 - high power telephoto zoom lens for remote surveillance

Features:

Make: Fujinon
Model code: C22x23A-M41
Zoom type: Motorised
Lens Format inches: 1 inch
Focal Length mm: 23 ~ 506 mm focal length

Additional info:

High power zoom lens with focal length of 500mm, best suited to remote surveillance. For 1" ~ 1/3" cameras. Remote iris. Compact and lightweight design, allowing compact systems to be established with ease. Multi power compatibility (6V, ±6V, 12V, ±12V) for use with existing control systems. Supports 1"11 tube cameras. With metal mount.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Fujinon
Manufacturer	FUJIFILM Optical Devices Europe GmbH
Category	CCTV>CCTV camera lenses
Model code	C22x23A-M41
Zoom type	Motorised
Lens Format inches	1 inch
Focal Length mm	23 ~ 506 mm focal length
Lens Mount	C mount
F-Stop	F3.1 ~ 22, Close F-stop
Zoom Ratio	22:1 zoom
Additional info	High power zoom lens with focal length of 500mm, best suited to remote surveillance. For 1" ~ 1/3" cameras. Remote iris. Compact and lightweight design, allowing compact systems to be established with ease. Multi power compatibility (6V, ±6V, 12V, ±12V) for use with existing control systems. Supports 1"11 tube cameras. With metal mount.
Download PDF version Download PDF version
