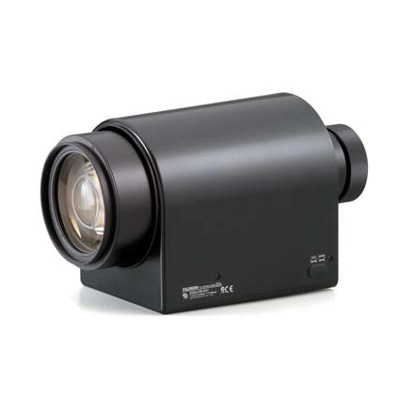

Fujinon C22x17R2D-V41 - Fujinon zoom lens with near-infrared wavelength selection

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Fujinon C22x17R2D-V41 - Fujinon zoom lens with near-infrared wavelength selection

Features:

Make: Fujinon
Model code: C22x17R2D-V41
Lens Type: Zoom
Zoom type: Motorised
Lens Format inches: 1 inch

Additional info:

22x zoom lens with near-infrared wavelength selection mechanism; best suited for day & night cameras. For 1" ~ 1/3" cameras. Remotely operable auto iris. Compact and lightweight design, allowing compact systems to be established with ease. Multi power compatibility (6V, ±6V, 12V, ±12V) for use with existing control systems. Special built-in ND filter of T3000. Supports 1" photomultiplier tube cameras. With metal mount.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Fujinon
Manufacturer	FUJIFILM Optical Devices Europe GmbH
Category	CCTV>CCTV camera lenses
Model code	C22x17R2D-V41
Lens Type	Zoom
Zoom type	Motorised
Lens Format inches	1 inch
Focal Length mm	17 ~ 374 mm focal length
Iris Type	Direct drive
Lens Mount	C mount
F-Stop	F2.3 ~ T3000 F-stop
Zoom Ratio	22:1 zoom
Direct Drive	Yes
Angle (Field) of View ^o	Wide: 41 16 x 31 32, Tele: 1 58 x 1 28
Minimum Object Distance m	3
Physical Specifications	Weight g: 2,300
Additional info	22x zoom lens with near-infrared wavelength selection mechanism; best suited for day & night cameras. For 1" ~ 1/3" cameras. Remotely operable auto iris. Compact and lightweight design, allowing compact systems to be established with ease. Multi power compatibility (6V, ±6V, 12V, ±12V) for use with existing control systems. Special built-in ND filter of T3000. Supports 1" photomultiplier tube cameras. With metal mount.
