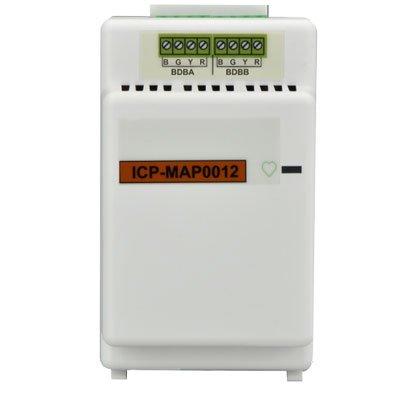

Bosch ICP-MAP0012 MAP CAN splitter module

Technical Specification

Features:

Make: Bosch
Model code: ICP-MAP0012
Control Panels & Accessories: Yes
Accessories: LSN Gateway Module
Dimensions mm: 159 x 83 x 64

Additional info:

Provides two independent and isolated stubs for the connection of further keypads, gateways and external power supplies Higher reliability due to up to 17 independent areas per MAP 5000 Less investment costs Easy installation due to simple sliding onto the rail No configuration needed

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Bosch
Manufacturer	Bosch Security Systems
Category	Intruder Alarms>Intruder alarm system control panels & accessories
Model code	ICP-MAP0012
Control Panels & Accessories	Yes
Accessories	LSN Gateway Module
Physical Specifications	Dimensions mm: 159 x 83 x 64
Environmental Specifications	Operating Temp ^oC: -10 ~ 55 C (14 ~ 131 F)
Additional info	Provides two independent and isolated stubs for the connection of further keypads, gateways and external power supplies Higher reliability due to up to 17 independent areas per MAP 5000 Less investment costs Easy installation due to simple sliding onto the rail No configuration needed
