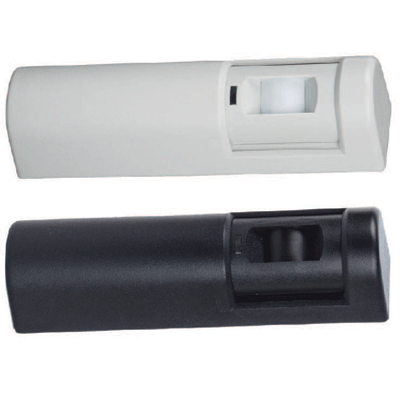

Bosch DS 161 intruder detector with sounder alert

Technical Specification

Features:

Make: Bosch
Model code: DS161
Coverage/ Range m: 2.4 x 3
Power Supply: 12 ~ 30 V AC
Dimensions mm: 45 x 171 x 44

Additional info:

DS161 Request-to-exit Detector. Black enclosure. For use in request-to-exit (REX) applications. Provides 2.4 m x 3 m (8 ft x 10 ft) coverage, timers, door monitor with sounder alert, and pointable coverage.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Bosch
Manufacturer	Bosch Security Systems
Category	Intruder Alarms>Intruder detectors
Model code	DS161
Coverage/ Range m	2.4 x 3
Electrical Specifications	Power Supply: 12 ~ 30 V AC
Physical Specifications	Dimensions mm: 45 x 171 x 44
Environmental Specifications	Operating Temp ^oC: -29 ~ +49
Additional info	DS161 Request-to-exit Detector. Black enclosure. For use in request-to-exit (REX) applications. Provides 2.4 m x 3 m (8 ft x 10 ft) coverage, timers, door monitor with sounder alert, and pointable coverage.
