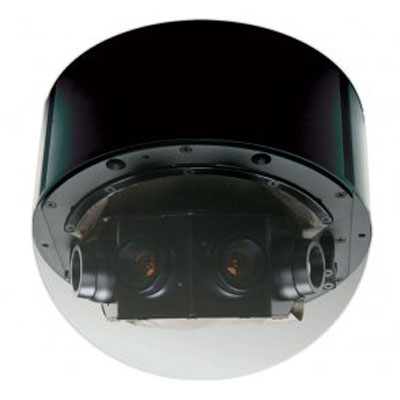

Arecont Vision AV8185 colour network dome camera

Technical Specification

Features:
  • Make: Arecont Vision
  • Model code: AV8185
  • Chip Inch Size: 1/2
  • Colour Type: Colour
  • Resolution TVL: 1600 x 1200
Read more
Additional info:

The AV8185 network camera is a part of Arecont Vision’s full line of H.264 megapixel cameras. This fully compliant implementation of H.264 (MPEG 4, Part 10) is capable of sustaining over 80 billion operations per second and maintaining full motion progressive scan 1600 x 1200 video at 22 fps per sensor. Part of the SurroundVideo® line of cameras, it offers bandwidth and storage efficiency of 10X greater on average over MJPEG counterparts

Read more
Make Arecont Vision
Manufacturer Arecont Vision
Model code AV8185
Chip Inch Size 1/2
Colour Type Colour
Resolution TVL 1600 x 1200
Sensitivity lux 0.2
Compression MPEG-4, MJPEG, H.264
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
S/ N (Signal/ Noise) Ratio dB 45
Network Properties Interface: 100Base-T Ethernet
Network Protocols: TFTP, HTTP, RTSP
Image Frame Rate: 88 fps
Electrical Specifications Power Consumption: 8 W
Physical Specifications Dimensions mm: 165 x 183
Weight g: 1,815
Environmental Specifications Operating Temp oC: 0 ~ 50 C (32 ~ 122 F)
Operating Humidity %: 0 ~ 90 (non-condensing)
Additional info
The AV8185 network camera is a part of Arecont Vision’s full line of H.264 megapixel cameras. This fully compliant implementation of H.264 (MPEG 4, Part 10) is capable of sustaining over 80 billion operations per second and maintaining full motion progressive scan 1600 x 1200 video at 22 fps per sensor. Part of the SurroundVideo® line of cameras, it offers bandwidth and storage efficiency of 10X greater on average over MJPEG counterparts
