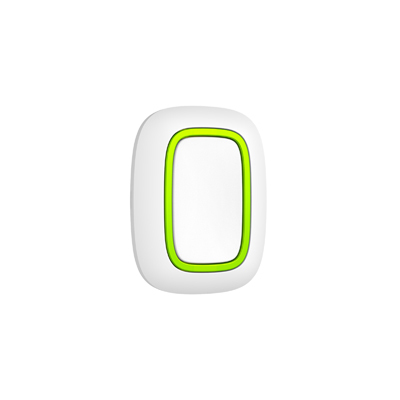

Ajax Button - Wireless panic button

Technical Specification

Features:
  • Make: Ajax
  • Model code: Button
  • Power Supply: 3V
  • Weight g: 16
  • Dimensions mm: 47 х 35 х 13
Additional info:

Call backup in one click Press the Button in case of emergency. It’ll send an immediate alarm to a hub following by a green blink to indicate successful delivery. The security system will call a response company and send the notifications to your close ones or colleagues. It can also turn on the sirens to scare off the intruders. Within a hand’s reach Ajax Button is very compact and almost weightless. You can always keep it on the body or set it up on any surface. Without false alarms The body of the Ajax Button is designed to prevent false alarm even if you sit or lay on it. And to ensure additional protection, you can set it up to react only on a double tap or a long press (for 1.5 seconds). Guarantees alarm delivery Ajax panic button communicates with a hub using Jeweller Channels protocol on a distance of up to 1300 m. Once it delivers an alarm, you’ll see a green blink. Jeweller encrypts all of the transmitted data. In case of signal interference or radio jamming, Ajax system switches the radio frequency and notifies you as well as the security company about the situation. Signal range up to 1300 m Alarm delivery confirmation Encryption with a modified AES algorithm Frequency hopping

Read more
Make Ajax
Manufacturer Ajax Systems
Model code Button
Electrical Specifications Power Supply: 3V
Physical Specifications Weight g: 16
Dimensions mm: 47 х 35 х 13
Environmental Specifications Operating Temp oC: -10 ~ +40 C (14 ~ 104 F)
Operating Humidity %: 75
Additional info

Call backup in one click

Press the Button in case of emergency. It’ll send an immediate alarm to a hub following by a green blink to indicate successful delivery. The security system will call a response company and send the notifications to your close ones or colleagues. It can also turn on the sirens to scare off the intruders.

Within a hand’s reach

Ajax Button is very compact and almost weightless. You can always keep it on the body or set it up on any surface.

Without false alarms

The body of the Ajax Button is designed to prevent false alarm even if you sit or lay on it. And to ensure additional protection, you can set it up to react only on a double tap or a long press (for 1.5 seconds).

Guarantees alarm delivery

Ajax panic button communicates with a hub using Jeweller Channels protocol on a distance of up to 1300 m. Once it delivers an alarm, you’ll see a green blink. Jeweller encrypts all of the transmitted data. In case of signal interference or radio jamming, Ajax system switches the radio frequency and notifies you as well as the security company about the situation.

  • Signal range up to 1300 m
  • Alarm delivery confirmation
  • Encryption with a modified AES algorithm
  • Frequency hopping
Download PDF version
