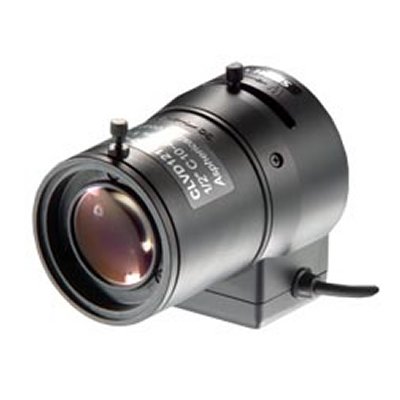

Vanderbilt CLVD1218/10-40 CCTV camera lens
Technical Specification
Features:
- Make: Vanderbilt
- Model code: CLVD1218/10-40
- Lens Format inches: 1/2 inch
- Focal Length mm: 10 ~ 40 mm focal length
- Iris Type: Auto Iris
Additional info:
Auto-iris lenses supplied with pre-fitted plug. Aspherical lenses ensure excellent image quality. Suitable for day/night cameras owing to IR corrected lenses. Quality slip-mount connection. Special multiple layer coating
Read more| Make | Vanderbilt |
|---|---|
| Manufacturer | Vanderbilt Industries |
| Category | CCTV>CCTV camera lenses |
| Model code | CLVD1218/10-40 |
| Lens Format inches | 1/2 inch |
| Focal Length mm | 10 ~ 40 mm focal length |
| Iris Type | Auto Iris |
| Lens Mount | C mount |
| IR Corrected (Aspherical) | Yes |
| F-Stop | 1.4 F-stop |
| Zoom Ratio | 1:4 zoom |
| Direct Drive | Yes |
| Angle (Field) of View o | 37.5 ~ 27.5 |
| Minimum Object Distance m | 0.3 |
| Physical Specifications | Dimensions mm: 38.7 x 62 x 4.0 |
| Environmental Specifications | Operating Temperature oC: -10 ~ +50 |
| Varifocal | Yes |
| Additional info | Auto-iris lenses supplied with pre-fitted plug. Aspherical lenses ensure excellent image quality. Suitable for day/night cameras owing to IR corrected lenses. Quality slip-mount connection. Special multiple layer coating |
