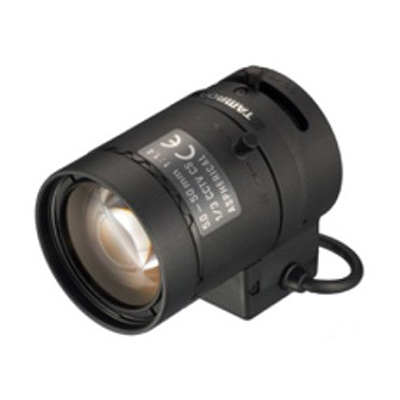

Vanderbilt 13VG550ASII CS mount varifocal lens

Technical Specification

Features:
  • Make: Vanderbilt
  • Model code: 13VG550ASII
  • Lens Type: Varifocal
  • Focal Length mm: 5 ~ 50
  • Iris Type: Auto Iris
Read more
Additional info:

The Vanderbilt 13VG550ASII is a 1/3" varifocal, Auto Iris (direct drive) lens that is suitable for CS mount cameras. Its benefits from high performance aspherical glass to reduce aberrations. Adjustable screw locks ensure focal-length and focus adjustments are easy to set up and secure.

Read more
Make Vanderbilt
Manufacturer Vanderbilt Industries
Model code 13VG550ASII
Lens Type Varifocal
Focal Length mm 5 ~ 50
Iris Type Auto Iris
Lens Mount CS
F-Stop F1.4 ~ F360
Direct Drive Yes
Angle (Field) of View o 5.6° ~ 53.6°
Minimum Object Distance m 0.3
Physical Specifications Dimensions mm: 63
Weight g: 84
Environmental Specifications Operating Temperature oC: -20 ~ +60 C (-4 ~ +140 F)
Varifocal Yes
Additional info

The Vanderbilt 13VG550ASII is a 1/3" varifocal, Auto Iris (direct drive) lens that is suitable for CS mount cameras. Its benefits from high performance aspherical glass to reduce aberrations. Adjustable screw locks ensure focal-length and focus adjustments are easy to set up and secure.
