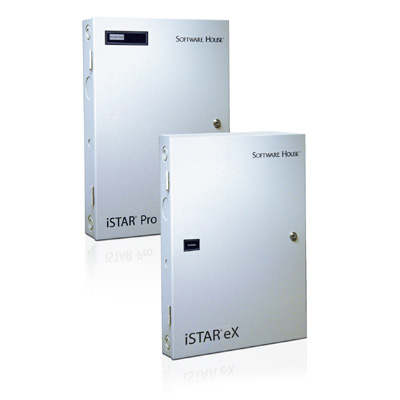

Software House STAR016W-64A Access control controller

Technical Specification

Features:
  • Make: Software House
  • Model code: STAR016W-64A
  • Series: iSTAR Pro Series
  • Controller Type: Networkable
  • Max No. of Doors per Controller: 16 doors/controller
Read more
Additional info:

64 MB RAM General Controller Module II with two Access Control Module II for up to 16 readers (Wiegand or RM).

Read more
Make Software House
Manufacturer Tyco International
Model code STAR016W-64A
Series iSTAR Pro Series
Controller Type Networkable
Max No. of Doors per Controller 16 doors/controller
Networkable Yes
Communication Type TCP/IP
Onboard No/Type of Inputs / Outputs 16 in, 8 out
Universal / Wiegand Reader Interface Yes
Electrical Specifications Voltage: 12 V DC
Power Consumption: 3.3 A
Physical Specifications Dimensions mm: 616 x 419 x 102
Weight g: 10.6 kg
Environmental Specifications Operating Temp oC: 0 ~ 50
Operating Humidity %: 5 ~ 95
Additional info

64 MB RAM General Controller Module II with two Access Control Module II for up to 16 readers (Wiegand or RM).

Download PDF version
