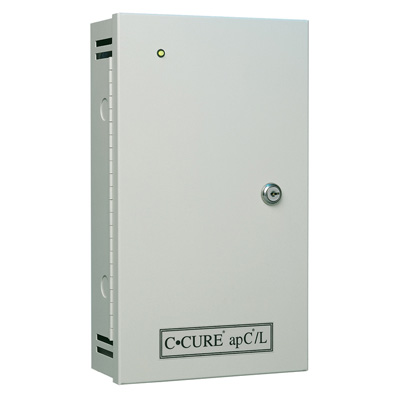

Software House AS0101-003 Access control controller

Technical Specification

Features:
  • Make: Software House
  • Model code: AS0101-003
  • Series: C-Cure Series
  • Controller Type: Standalone
  • Max No. of Doors per Controller: 2 doors/controller
Read more
Additional info:

apC/L2-2F, 2 readers, 512K memory FLASH Memory.  Need an external Power supply.

Read more
Make Software House
Manufacturer Tyco International
Model code AS0101-003
Series C-Cure Series
Controller Type Standalone
Max No. of Doors per Controller 2 doors/controller
No of Cardholders 20,000 cardholders
Networkable Yes
Communication Type RS-485
Onboard No/Type of Inputs / Outputs 8 in, 8 out
Universal / Wiegand Reader Interface Yes
Dial-up Functionality Yes
Electrical Specifications Voltage: 18 V AC
Power Consumption: 10 W
Physical Specifications Dimensions mm: 355 x 203 x 82
Weight g: 3.71 kg
Environmental Specifications Operating Temp oC: 0 ~ 70
Additional info apC/L2-2F, 2 readers, 512K memory FLASH Memory.  Need an external Power supply.
