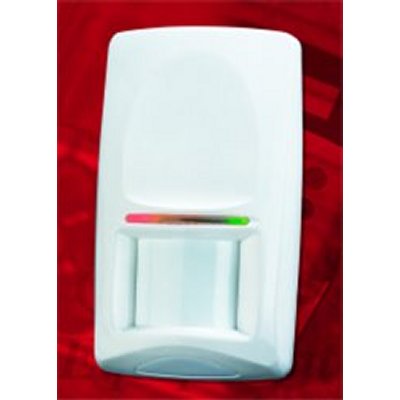

Pyronix Veritec P2 “confirmed” detector

Product Profile

Please note: this is a discontinued product.

Go to Replacement product

Pyronix’s latest detector has been designed and developed specifically with ACPO 2000 policy compliance in mind. The Veritec P2 integrates two detection technologies: an atmospheric pressure sensor and separate PIR sensor. These two detectors, combined in one unit, provide ACPO compliant confirmation and reduce false alarms. Key features include:

Sequential confirmation detection
Separate relay outputs
Elegant housing wired with one standard cable
Suitable for both new systems and retro-fits
Training CD Rom available

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Technical Specification

Make	Pyronix
Manufacturer	Pyronix Limited
Category	Intruder Alarms>Intruder detectors
Model code	Veritec P2
PIR Detectors	Yes
Dual/ Quad Technology	Dual Technology Detectors
Coverage/ Range m	5 -15
Dual Element Sensor	Yes
Temperature Compensation	Yes
Sealed Optics	Yes
Creep Zone	Creep Zone
White Light Filter	Yes
Independant Floating Thresholds (IFT)	Yes
Accessories	Combined pressure and PIR detector
Environmental Specifications	Operating Temp ^oC: -30 ~ +70
Additional info	Pressure detection technology. High precision pressure sensor. Microprocessor technology. Maximum volume 700 cubic metres. Self test on power up. 4 sensitivity settings. Remote pressure sensor latch input. Independent solid state relay outputs. Pressure LED. Mirror creep zone. RFI immunity. Sequential Pattern Processing (SPP+/SPP+1). PIR LED. On/off alarm LED indication link. 3mm electrostatic shielded case. Storage temp: -40~80. Selectable pressure relay opening time: 3 seconds or 10 minutes.
