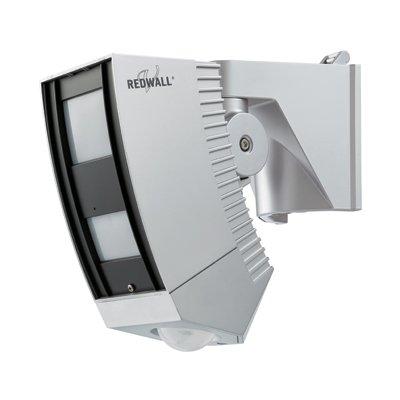

Optex REDWALL SIP-100-IP-BOX long range IP/PoE outdoor PIR

Technical Specification

Features:

Make: OPTEX
Model code: REDWALL SIP-100-IP-BOX
Motion detector type: Passive Infrared detector
Detector Range m: 100 x 3 m detector range
Indoor/Outdoor: Outdoor

Additional info:

Intelligent PIR detection system Detection of ambient temperature and illuminance for automatic sensitivity management Advanced detection algorithm Double Quad pyro-elements with patented Double Conductive Shielding for main area SIP-100-IP Built-in creep zone detector (Double dual pyro-elements)

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	OPTEX
Manufacturer	OPTEX
Category	CCTV>Video motion detectors
Model code	REDWALL SIP-100-IP-BOX
Motion detector type	Passive Infrared detector
Detector Range m	100 x 3 m detector range
Indoor/Outdoor	Outdoor
Electrical Specifications	Voltage: PoE
Physical Specifications	Dimensions mm: 331 x 102 x 290 Weight g: 2100
Environmental Specifications	Operating Temperature ^oC: -25 ~ +60 C (-13 ~ +140 F), -40 ~ +60 C (-40 ~ +140 F) Protection: IP55/IP65
Additional info	Intelligent PIR detection system Detection of ambient temperature and illuminance for automatic sensitivity management Advanced detection algorithm Double Quad pyro-elements with patented Double Conductive Shielding for main area SIP-100-IP Built-in creep zone detector (Double dual pyro-elements)
