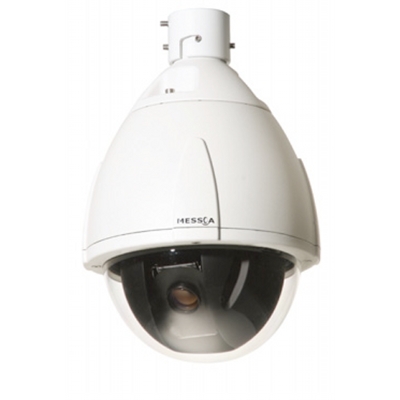

Messoa SDS750-HN2 high speed PTZ DSP dome camera with 480 TVL and 432x zoom

Please note: this is a discontinued product.

Go to Replacement product

Features:

Additional info:

With heater and blower.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Messoa
Manufacturer	MESSOA Technologies Inc.
Category	CCTV>Dome cameras
Model code	SDS750-HN2
Chip Inch Size	1/4 inch
Colour Type	Colour / Monochrome
Resolution TVL	480
Sensitivity lux	0.01 lux
Digital (DSP)	Yes
Electrical Specifications	Voltage: 24 V AC Power Consumption: 46 W
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/1 ~ 1/10,000
S/ N (Signal/ Noise) Ratio dB	50
Synchronisation	Internal / Line Lock
Signal Mode	PAL / NTSC
Video Output	1Vpp composite output, 75 ohm
Zoom Ratio	x432
Physical Specifications	Dimensions mm: 216.6 x 324 Weight g: 3,500
Environmental Specifications	Operating Temp ^oC: -40 ~ +60 Operating Humidity %: 20 ~ 80 Protection: IP67
Additional info	With heater and blower.
