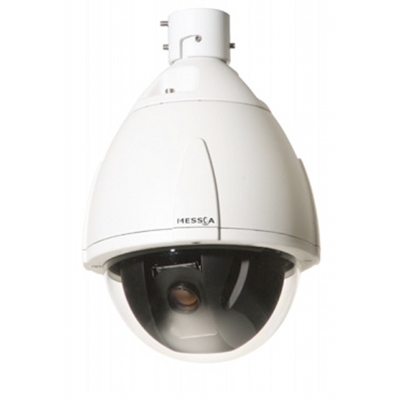

Messoa SDS730 colour/monochrome high speed PTZ DSP dome camera

Technical Specification

  • Make: Messoa
  • Model code: SDS730
  • Chip Inch Size: 1/4
  • Colour Type: Colour / Monochrome
  • Resolution TVL: 480
Read more
Additional info:

With heater and blower.

Read more
Make Messoa
Manufacturer MESSOA Technologies Inc.
Model code SDS730
Chip Inch Size 1/4
Colour Type Colour / Monochrome
Resolution TVL 480
Sensitivity lux 0.01
Digital (DSP) Yes
Electrical Specifications Voltage: 24 V AC
Power Consumption: 46 W
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1/1 ~ 1/10,000
S/ N (Signal/ Noise) Ratio dB 50
Synchronisation Internal / Line Lock
Signal Mode PAL / NTSC
Video Output 1Vpp composite output, 75 ohm
Zoom Ratio x312
Physical Specifications Dimensions mm: 216.6 x 324
Weight g: 3,500
Environmental Specifications Operating Temp oC: -40 ~ +60
Operating Humidity %: 20 ~ 80
Protection: IP67
Additional info With heater and blower.
