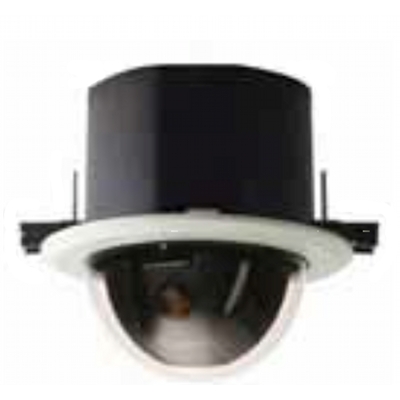

Messoa SDS712M colour dome camera with 480 TVL

Technical Specification

Features:
  • Make: Messoa
  • Model code: SDS712M
  • Chip Inch Size: 1/4
  • Colour Type: Colour
  • Resolution TVL: 480
Read more
Make Messoa
Manufacturer MESSOA Technologies Inc.
Model code SDS712M
Chip Inch Size 1/4
Colour Type Colour
Resolution TVL 480
Sensitivity lux 0.05
Digital (DSP) Yes
Electrical Specifications Voltage: 24 V AC
Power Consumption: 18 W
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1/50 ~ 1/10,000
S/ N (Signal/ Noise) Ratio dB 50
Synchronisation Internal / Line Lock
Signal Mode PAL / NTSC
Video Output 1Vpp composite output, 75 ohm
Zoom Ratio x216
Physical Specifications Dimensions mm: 250 x 257
Weight g: 3,500
Environmental Specifications Operating Temp oC: -10 ~ +50
Operating Humidity %: 20 ~ 80
