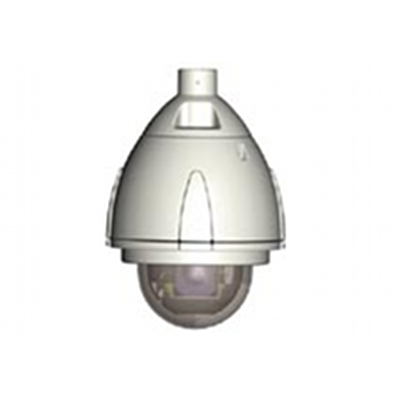

Messoa SDS660 high speed day/night PTZ DSP dome camera with auto slow shutter

Technical Specification

Features:
  • Make: Messoa
  • Model code: SDS660
  • Chip Inch Size: 1/4
  • Colour Type: Colour / Monochrome
  • Resolution TVL: 480
Read more
Make Messoa
Manufacturer MESSOA Technologies Inc.
Model code SDS660
Chip Inch Size 1/4
Colour Type Colour / Monochrome
Resolution TVL 480
Sensitivity lux 0.01
Digital (DSP) Yes
Electrical Specifications Voltage: 24 VAC
Power Consumption: 20 W
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1/60 ~ 1/100,000
S/ N (Signal/ Noise) Ratio dB 50
Synchronisation Internal / Line Lock
Signal Mode PAL / NTSC
Video Output 1 Vp-p, 75 Ohms
Zoom Ratio x216 optical zoom
Physical Specifications Dimensions mm: 233.7 x 134
Weight g: 1,750
Environmental Specifications Operating Temp oC: 0 ~ 50
Operating Humidity %: 20 ~ 80
Protection: IP66
