Messoa announces the 600TVL dome camera that features the new high sensitivity Lumii™ II technology

Product Profile

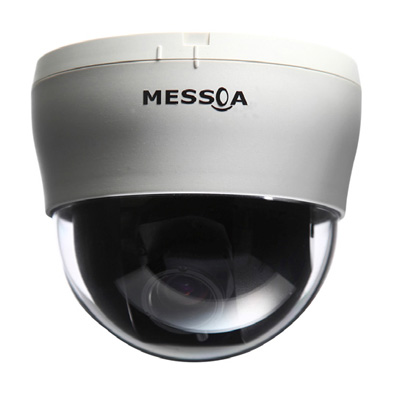

Messoa recently introduced a new high sensitivity dome camera for video security applications with the launch of the indoor SDF446 network camera. This camera delivers clear and crisp CCTV images with a level of detail never seen before. It offers very high resolution images of 600 TVL in Colour mode, with a low lux sensitivity of 0.015 lux. It features Lumii™ II, Day/Night function, 3D DNR, OSD and 3-Axis rotation. The SDF446 is ideally suited for casinos, retail stores and banks.

One highlight of the SDF446 is Messoa's Lumii™ II technology. Designed to enhance camera sensitivity, this cutting-edge feature delivers very crisp captures even in the dimmest conditions. This enables the SDF446 to capture clear colour images in very low light environments, something traditional cameras simply cannot do. A Day/Night function can switch from colour to B/W automatically depending on available light. This function allows the camera to capture images in as little as 0.015 lux of light.

Also, this camera has a built-in next generation 3D DNR. 3D noise reduction is a powerful method for reducing image noise. Crystal clear images appear even in very dim lighting conditions. Noise reduction also cuts image size, reducing storage requirements and costs. Furthermore, WDR function allows users to better distinguish features and shapes by filtering intense backlight around an object and capture sharp images even in high contrast lighting environments.

User friendly features such as an OSD menu helps users quickly set-up the camera functions without difficulties. Video parameters such as BLC, 3D DNR, white balance and much more can be configured. The easy-to-use menu can be learned in a few minutes. No more reading a manual and tipping dip-switches for configuration. A 3-Axis function offers free 3D rotation. Easy installation on any vertical surface eliminates brackets.

Rich in features and exceptionally well-built, the SDF446 delivers superior functionality and top-tier performance in monitoring applications.

Read more

Technical Specification

Make Messoa
Manufacturer MESSOA Technologies Inc.
Model code SDF446
Chip Inch Size 1/3
Colour Type Colour / Monochrome
Resolution TVL 600
Sensitivity lux 0.015
Electrical Specifications Voltage: 12 VDC / 24 VAC
Power Consumption: 2.5 W
Focal length 2.8 ~ 10.5
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
S/ N (Signal/ Noise) Ratio dB 50
Synchronisation Internal, Line Lock
Signal Mode PAL / NTSC
Video Output 1 Vp-p, composite, 75 ohm
Physical Specifications Dimensions mm: 112 x 101
Weight g: 300
Environmental Specifications Operating Temp oC: -10 ~ +50
Operating Humidity %: 0 ~ 90
