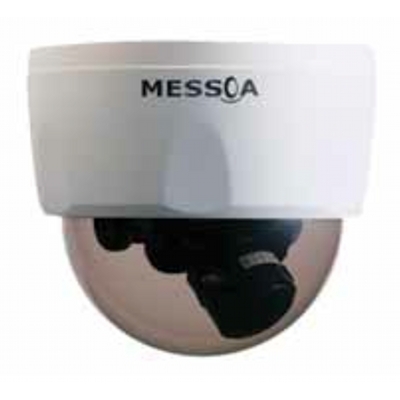

Messoa SDF443 3x vari-focal DSP dome camera

Technical Specification

Features:
  • Make: Messoa
  • Model code: SDF443
  • Chip Inch Size: 1/4
  • Colour Type: Colour
  • Resolution TVL: 480
Read more
Make Messoa
Manufacturer MESSOA Technologies Inc.
Model code SDF443
Chip Inch Size 1/4
Colour Type Colour
Resolution TVL 480
Sensitivity lux 0.1
Dome Type Variable Focus
Digital (DSP) Yes
Electrical Specifications Voltage: 12 V DC / 24 V AC
Power Consumption: 3.5 W
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
S/ N (Signal/ Noise) Ratio dB 50
Synchronisation Internal / Line Lock
Signal Mode PAL / NTSC
Video Output 1 Vp-p, 75 Ohms
Zoom Ratio x3.6
Physical Specifications Dimensions mm: 96 x 110
Weight g: 300
Environmental Specifications Operating Temp oC: -10 ~ +50
Operating Humidity %: 30 ~ 90
