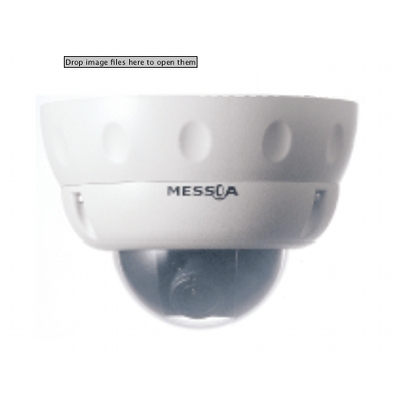

Messoa SDF415 vandal proof 3X vari-focal DSP dome camera

Technical Specification

Features:
  • Make: Messoa
  • Model code: SDF415
  • Chip Inch Size: 1/3
  • Colour Type: Colour / Monochrome
  • Resolution TVL: 540
Read more
Make Messoa
Manufacturer MESSOA Technologies Inc.
Model code SDF415
Chip Inch Size 1/3
Colour Type Colour / Monochrome
Resolution TVL 540
Sensitivity lux 0.01
Dome Type Variable focus
Digital (DSP) Yes
Electrical Specifications Voltage: 12 V DC / 24 V AC
Power Consumption: 3.5 W
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
S/ N (Signal/ Noise) Ratio dB 50
Synchronisation Internal / Line Lock
Signal Mode PAL / NTSC
Video Output 1 Vp-p, 75 Ohms
Zoom Ratio x3.6
Physical Specifications Dimensions mm: 160 x 115
Weight g: 1,150
Environmental Specifications Operating Temp oC: -10 ~ +50
Operating Humidity %: 30 ~ 90
Protection: IP66
