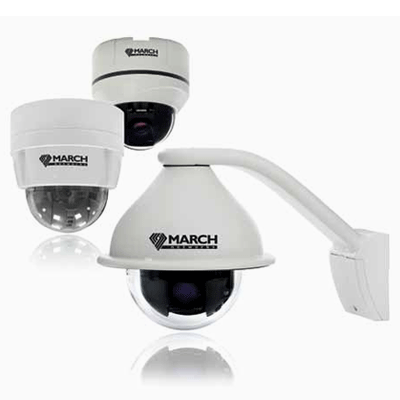

March Networks VideoSphere MegaDome PTZ dome camera with exceptional motion capture
Technical Specification
Features:
- Make: March Networks
- Model code: VideoSphere MegaDome PTZ
- Chip Inch Size: 1/3 inch
- Colour Type: Colour / Monochrome
- Resolution TVL: 1600 x 1200
| Make | March Networks |
|---|---|
| Manufacturer | March Networks Corporation |
| Category | CCTV>Dome cameras |
| Model code | VideoSphere MegaDome PTZ |
| Chip Inch Size | 1/3 inch |
| Colour Type | Colour / Monochrome |
| Resolution TVL | 1600 x 1200 |
| Sensitivity lux | 0.1 lux |
| Dome Type | Variable Focus |
| Pan Speed o/ sec | 400 o/ sec pan speed |
| Indoor/Outdoor | Indoor/Outdoor |
| Electrical Specifications |
Voltage: 24 V AC Power Consumption: 50 W |
| Focal length | 4.5 ~ 72 |
| Rotation Angleso | 90 tilt |
| Presets | 200 |
| Compression | H.264, MPEG-4 |
| S/ N (Signal/ Noise) Ratio dB | 42.3 |
| Signal Mode | PAL / NTSC |
| Zoom Ratio | x16 |
| Network Properties |
Interface: Ethernet 10/100 Mbps Image Frame Rate: 30 fps |
| Physical Specifications |
Dimensions mm: 268 x 260 Weight g: 2,500 |
| Environmental Specifications |
Operating Temp oC: -10 ~ 50 Operating Humidity %: 8 ~ 90 Protection: IP66 |
