Technical Specification

Features:
  • Make: Honeywell Security
  • Model code: OP90HONE
  • Series: OmniProx Series
  • Long Range: Yes
  • Reader Type: Proximity
Read more
Additional info:

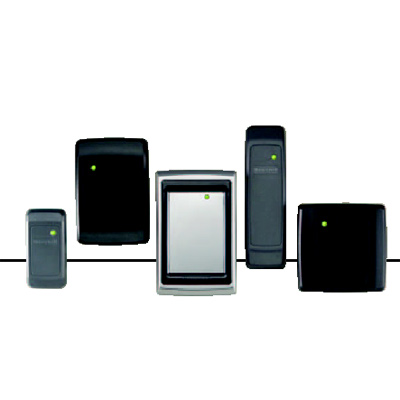

For locations that require a proximity reader able to withstand the vandal-prone environments, such as: universities, schools, elevators and prisons, the OP90 vandal resistant reader comes standard in a zinc die-cast metal housing.

Read more
Make Honeywell Security
Manufacturer Honeywell
Model code OP90HONE
Series OmniProx Series
Long Range Yes
Reader Type Proximity
Mount Type Wall
Read Range mm 32 ~ 51
Colour Black / Charcoal / Grey / Ivory
Electrical Specifications Voltage: 16 VDC
Power Consumption: 100 mA
Physical Specifications Dimensions mm: 114 x 80 x 15
Environmental Specifications Operating Temp oC: -31 ~ 63
Operating Humidity %: 0 ~ 95
Protection Vandal / Weather Resistant
Additional info For locations that require a proximity reader able to withstand the vandal-prone environments, such as: universities, schools, elevators and prisons, the OP90 vandal resistant reader comes standard in a zinc die-cast metal housing.
