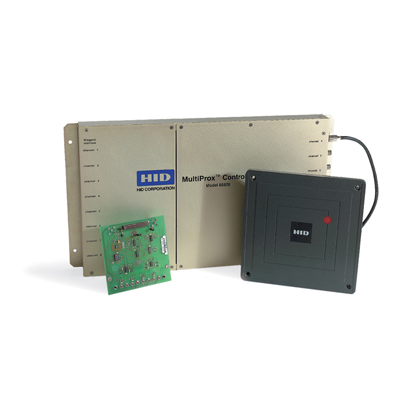

HID MultiProx - controller Access control controller

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

HID MultiProx - controller Access control controller

Features:

Make: HID
Model code: MultiProx - controller
Controller Type: Networkable
Max No. of Doors per Controller: 8
Networkable: Yes

Additional info:

The MultiProx Controller replaces the Schlage 708 or 808 series sensor controller. The controller includes a selectable DIP switch for transmission of either a 26-bit or a 32-bit Wiegand message to the host system. Status changes for inputs monitored by the HSM are transmitted via Form C relays to the new access control panel.

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	HID
Manufacturer	HID Global
Category	Access Control>Access control controllers
Model code	MultiProx - controller
Controller Type	Networkable
Max No. of Doors per Controller	8
Networkable	Yes
Universal / Wiegand Reader Interface	Yes
Reader Max. Distance m	750
Electrical Specifications	Voltage: 24 V DC Power Consumption: 2.0 Amp
Physical Specifications	Dimensions mm: 45.7 x 25.4 x 4.6 Weight g: 1,491
Environmental Specifications	Operating Temp ^oC: -20 ~ +50 Operating Humidity %: 5 ~ 95
Additional info	The MultiProx Controller replaces the Schlage 708 or 808 series sensor controller. The controller includes a selectable DIP switch for transmission of either a 26-bit or a 32-bit Wiegand message to the host system. Status changes for inputs monitored by the HSM are transmitted via Form C relays to the new access control panel.
