HID Mercury™ MS-ICS Controller

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Features:

Make: HID
Model code: Mercury™ MS-ICS
Series: MS Bridge
Controller Type: Networkable
Max No. of Doors per Controller: 64 reader capacity

Additional info:

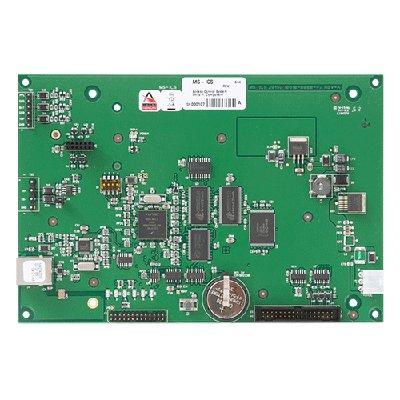

The MC-ICS is a multi-device interface panel that replicates the Software House access control hardware and is a direct retrofit of the Software House Pro GCM module. The HID Mercury Controller MS Bridge line maintains Mercury’s original vision for building a completely open access control hardware platform with a highly articulated API. To ensure organizations can protect their significant investments in access control systems, the MS Bridge provides an alternate choice for customers seeking to upgrade their current access control hardware to the feature-rich HID Mercury controller open platform. Key Benefits: Retrofitting – Retrofits Software House Pro Series controllers with a plug and play format for a “screwdriver-less” changeover Simple Migration – Provides a streamlined path for organizations to “upgrade” while reducing overall costs by eliminating the need to rewire legacy peripheral devices Open and Flexible – Built on the HID Mercury hardware open platform and designed to support emerging technologies, changing industry standards and evolving system environments Market-Proven – Delivers consistent dependability with the industry’s largest installed base, providing partners and customers with the most reliable and scalable platform for more than 20 years

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	HID
Manufacturer	HID
Category	Access Control>Access control controllers
Model code	Mercury™ MS-ICS
Controller Type	Networkable
Max No. of Doors per Controller	64 reader capacity
No of Cardholders	600,000
Communication Type	9600, 18200, 35400, or 115200 bps, asynchronous
Electrical Specifications	Voltage: 12 V DC Power Consumption: 275 mA
Physical Specifications	Dimensions mm: 218 x 148 x 25 Weight g: 162
Environmental Specifications	Operating Temp ^oC: 0 ~ 50 C (32 ~ 122 F) Operating Humidity %: 5 ~ 95
Additional info	The MC-ICS is a multi-device interface panel that replicates the Software House access control hardware and is a direct retrofit of the Software House Pro GCM module. The HID Mercury Controller MS Bridge line maintains Mercury’s original vision for building a completely open access control hardware platform with a highly articulated API. To ensure organizations can protect their significant investments in access control systems, the MS Bridge provides an alternate choice for customers seeking to upgrade their current access control hardware to the feature-rich HID Mercury controller open platform. Key Benefits: Retrofitting – Retrofits Software House Pro Series controllers with a plug and play format for a “screwdriver-less” changeover Simple Migration – Provides a streamlined path for organizations to “upgrade” while reducing overall costs by eliminating the need to rewire legacy peripheral devices Open and Flexible – Built on the HID Mercury hardware open platform and designed to support emerging technologies, changing industry standards and evolving system environments Market-Proven – Delivers consistent dependability with the industry’s largest installed base, providing partners and customers with the most reliable and scalable platform for more than 20 years
