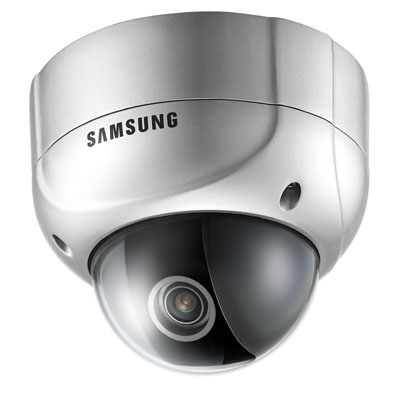

Hanwha Techwin America Techwin SVD-4600 1/3 High Resolution, WDR Vandal-Resistant Dome CCTV Camera

Technical Specification

Features:
  • Make: Hanwha Techwin America
  • Previously known as: Samsung
  • Model code: SVD-4600
  • Chip Inch Size: 1/3
  • Colour Type: Colour / Monochrome
Read more
Additional info:

The SVD-4600 is a tough vandal-proof dome camera that consists of a die-cast dome body and a polycarbonate dome cover. It has Hanwha Techwin's DSP chipset SVIV built in to give ultra low light imaging at 0.3Lux, ICR Day & Night, and 128X WDR features. It is a versatile dome camera for indoor/outdoor applications, that provides enhanced additional features such as multi-language OSD and DIS digital image stabilization.

Read more
Make Hanwha Techwin America
Manufacturer Hanwha Techwin America
Previously known as Samsung
Model code SVD-4600
Chip Inch Size 1/3
Colour Type Colour / Monochrome
Resolution TVL 700
Dome Type Variable Focus
Sensitivity lux 0.001
Digital (DSP) Yes
Indoor/Outdoor Indoor/Outdoor
Mount Type Ceiling, Wall
Electrical Specifications Voltage: 12 V DC / 24 V AC
Power Consumption: 3.5 W
Rotation Angleso 0 ~ 146 (tilt), 0 ~ 340 (pan)
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1/60 ~ 1/100,000
S/ N (Signal/ Noise) Ratio dB 52
Synchronisation Internal, Line-lock
Video Output 1.0 Vp-p, 75 Ohms
Zoom Ratio x3.6
Network Properties Network Protocols: STW, Pelco-D
Physical Specifications Dimensions mm: 148 (Dia) x 126
Weight g: 1.3 kg
Environmental Specifications Operating Temp oC: -10 ~ +50
Operating Humidity %: 20 ~ 80
Additional info The SVD-4600 is a tough vandal-proof dome camera that consists of a die-cast dome body and a polycarbonate dome cover. It has Hanwha Techwin's DSP chipset SVIV built in to give ultra low light imaging at 0.3Lux, ICR Day & Night, and 128X WDR features. It is a versatile dome camera for indoor/outdoor applications, that provides enhanced additional features such as multi-language OSD and DIS digital image stabilization.
Download PDF version
