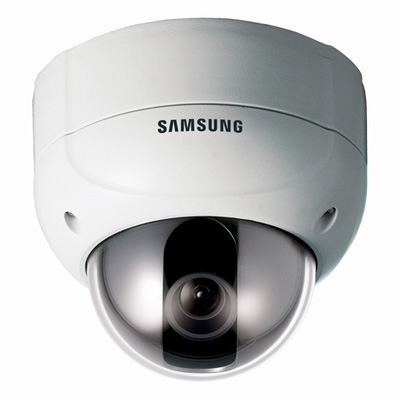

Hanwha Techwin America Techwin SVD-4300N high resolution 10x vandal resistant dome camera

Technical Specification

Features:
  • Make: Hanwha Techwin America
  • Previously known as: Samsung
  • Model code: SVD-4300N
  • Chip Inch Size: 1/4
  • Colour Type: Colour / Monochrome
Read more
Additional info:

Read more
Make Hanwha Techwin America
Manufacturer Hanwha Techwin America
Previously known as Samsung
Model code SVD-4300N
Chip Inch Size 1/4
Colour Type Colour / Monochrome
Resolution TVL 570
Sensitivity lux 0.005
Digital (DSP) Yes
Electrical Specifications Voltage: 12 V DC / 24 V AC
Power Consumption: 3.5 W
Focal length 3.8 ~ 38
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
S/ N (Signal/ Noise) Ratio dB 50
Synchronisation Internal, Line-lock
Signal Mode NTSC
Built-in IR LED Yes
Video Output 1 Vp-p, CVBS, 75 Ohms
Zoom Ratio 10x
Network Properties Interface: RS-485 or RS-232C
Physical Specifications Dimensions mm: 148 x 126
Weight g: 1,400
Environmental Specifications Operating Temp oC: 0 ~ 50
Operating Humidity %: 30 ~ 80
Protection: IP66
