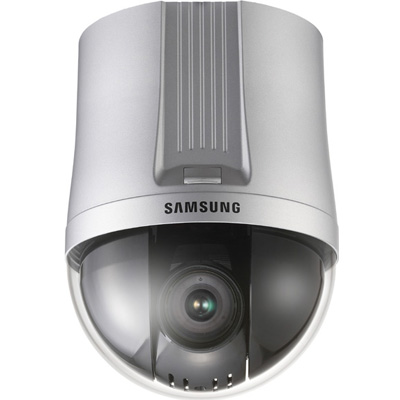

Hanwha Techwin America Techwin SPD-3750/T 1/4-inch High Performance, WDR 37X PTZ Dome Camera

Technical Specification

Features:
  • Make: Hanwha Techwin America
  • Previously known as: Samsung
  • Model code: SPD-3750T
  • Chip Inch Size: 1/4
  • Colour Type: Colour / Monochrome
Read more
Additional info:

The Hanwha Techwin SPD-3750, 3750T includes the alarm inputs and output as the following Input: 4, Output: 2 and Aux: 2.

Read more
Make Hanwha Techwin America
Manufacturer Hanwha Techwin America
Previously known as Samsung
Model code SPD-3750T
Chip Inch Size 1/4
Colour Type Colour / Monochrome
Resolution TVL 680
Sensitivity lux 0.002
Dome Type Continuous Rotation
Pan Speed o/ sec 0.024 ~ 120
Indoor/Outdoor Indoor/Outdoor
Tilt Speed o/ sec 0.024 ~ 120
Mount Type Ceiling, Wall
Electrical Specifications Voltage: 24 V AC
Power Consumption: 15 W
Focal length 3.5 ~ 129.5
Rotation Angleso 0 ~ 360 pan, -6 ~ +186 tilt
Presets 256
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1/60 ~ 1/120,000
S/ N (Signal/ Noise) Ratio dB 52
Synchronisation Internal, Line-lock
Signal Mode PAL/NTSC
Video Output 1.0 Vp-p, 75 Ohms
Zoom Ratio x37
Network Properties Network Protocols: STW, Pelco-D, Pelco-P, Panasonic, Honeywell, AD, V
Control: Remote Control
Physical Specifications Dimensions mm: 155 (Dia) x 241.7
Weight g: 2.0 kg
Environmental Specifications Operating Temp oC: -10 ~ +50
Operating Humidity %: 20 ~ 80
Additional info The Hanwha Techwin SPD-3750, 3750T includes the alarm inputs and output as the following Input: 4, Output: 2 and Aux: 2.
