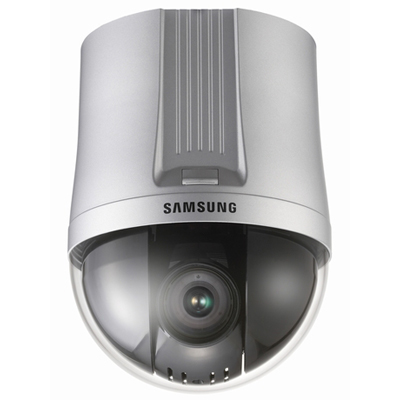

Hanwha Techwin America Techwin SPD-3750 high resolution WDR PTZ dome CCTV camera

Technical Specification

Features:
  • Make: Hanwha Techwin America
  • Previously known as: Samsung
  • Model code: SPD-3750
  • Chip Inch Size: 1/4
  • Colour Type: Colour / Monochrome
Read more
Additional info:

Hanwha Techwin SPD-3750 is a high resolution WDR PTZ dome CCTV camera.

Read more
Make Hanwha Techwin America
Manufacturer Hanwha Techwin America
Previously known as Samsung
Model code SPD-3750
Chip Inch Size 1/4
Colour Type Colour / Monochrome
Resolution TVL 680
Sensitivity lux 0.002
Dome Type Continuous Rotation
Indoor/Outdoor Indoor/Outdoor
Electrical Specifications Voltage: 24 VAC
Power Consumption: 15 W
Presets 255
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1/50 ~ 1/120,000
S/ N (Signal/ Noise) Ratio dB 50
Synchronisation Internal
Video Output 1.0 Vp-p, 75 Ohms
Zoom Ratio x37
Physical Specifications Dimensions mm: 155 x 243.4
Weight g: 2,000
Environmental Specifications Operating Temp oC: -10 ~ +50
Operating Humidity %: 20 ~ 80
Protection: IP67
Additional info Hanwha Techwin SPD-3750 is a high resolution WDR PTZ dome CCTV camera.
