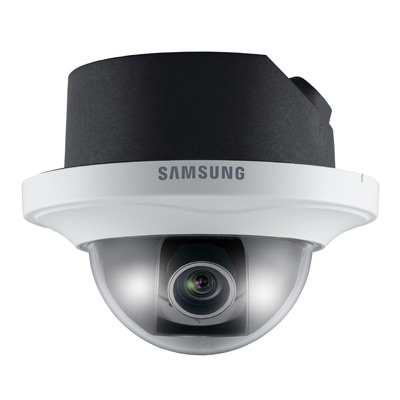

Hanwha Techwin America launches people counting network dome

Please note: this is a discontinued product.

Go to Replacement product

Features:

Additional info:

*HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2),ARP, DNS, DDNS

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Hanwha Vision
Manufacturer	Hanwha Vision Europe (formerly Hanwha Techwin Europe)
Previously known as	Samsung
Category	CCTV>Dome cameras
Model code	SND-3080CF
Chip Inch Size	1/3 inch
Colour Type	Colour
Resolution TVL	600
Sensitivity lux	0.2 @F1.2 lux
Electrical Specifications	Voltage: 12 V DC, 24 V AC, PoE Power Consumption: 8 W
Focal length	2.8 ~ 11
Compression	H.264, M-JPEG, MPEG-4
Electronic Shutter range	1/60 ~ 1/10,000
S/ N (Signal/ Noise) Ratio dB	52
Signal Mode	NTSC/PAL
Video Output	1 Vp-p
Zoom Ratio	x16
Network Properties	Interface: RJ45 (10/100 BASE-T) Network Protocols: TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP* Image Frame Rate: 30 fps
Physical Specifications	Dimensions mm: 133 x 129.4 Weight g: 523
Environmental Specifications	Operating Temp ^oC: -10 ~ +50 Operating Humidity %: 0 ~ 90
System Requirements	Operating System: Embedded Linux Web Browser: Internet Explorer 6.0 or higher
Additional info	*HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2),ARP, DNS, DDNS
