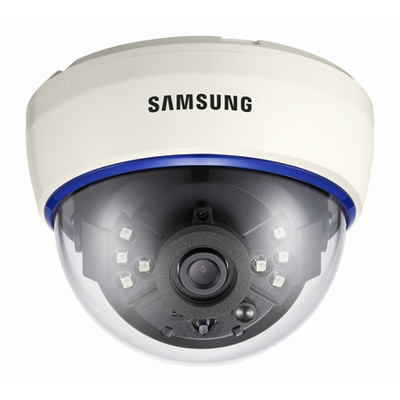

Hanwha Techwin America Techwin SIR-60 high resolution day & night IR LED dome camera with 700 TVL

Technical Specification

Features:
  • Make: Hanwha Techwin America
  • Previously known as: Samsung
  • Model code: SIR-60
  • Chip Inch Size: 1/3
  • Colour Type: Colour / Monochrome
Read more
Additional info:

Read more
Make Hanwha Techwin America
Manufacturer Hanwha Techwin America
Previously known as Samsung
Model code SIR-60
Chip Inch Size 1/3
Colour Type Colour / Monochrome
Resolution TVL 700
Sensitivity lux 0.0003
Dome Type Variable Focus
Indoor/Outdoor Indoor/Outdoor
Mount Type Ceiling, Wall
Electrical Specifications Voltage: 12 V DC
Power Consumption: 3.5 W
Focal length 3.6
Rotation Angleso 0 ~ 352 pan, 0 ~ 348 tilt
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1/60 ~ 1/120,000
S/ N (Signal/ Noise) Ratio dB 52
Synchronisation Internal, Line-lock
Signal Mode PAL, NTSC
Video Output 1.0 Vp-p, 75 Ohms
Physical Specifications Dimensions mm: 107.6 x 83.7
Weight g: 280
Environmental Specifications Operating Temp oC: -10 ~ +50
Operating Humidity %: 20 ~ 80
