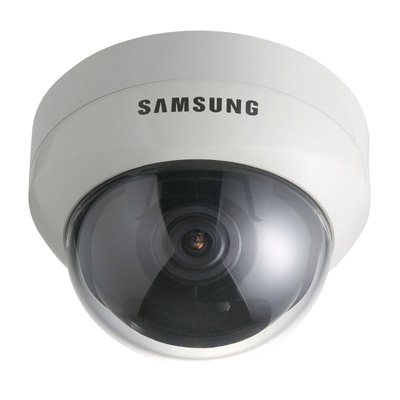

Hanwha Techwin America Techwin SID-452 1/3 High Resolution, Day & Night Dome CCTV Camera

Technical Specification

Features:
  • Make: Hanwha Techwin America
  • Previously known as: Samsung
  • Model code: SID-452
  • Series: SID Series
  • Chip Inch Size: 1/3
Read more
Make Hanwha Techwin America
Manufacturer Hanwha Techwin America
Previously known as Samsung
Model code SID-452
Series SID Series
Chip Inch Size 1/3
Colour Type Colour / Monochrome
Resolution TVL 530
Sensitivity lux 0.002
Dome Type Variable Focus
Indoor/Outdoor Indoor/Outdoor
Mount Type Ceiling, Wall
Electrical Specifications Voltage: 12 V DC/ 24 V AC
Power Consumption: 3 W
Rotation Angleso -175 ~ +175 (pan), -80 ~ + 80 (tilt)
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1/60 ~ 1/100,000
S/ N (Signal/ Noise) Ratio dB 50
Synchronisation Internal, Line-lock
Video Output 1.0 Vp-p, 75 Ohms
Zoom Ratio x3
Physical Specifications Dimensions mm: 130 (Dia) x 105
Weight g: 670
Environmental Specifications Operating Temp oC: -10 ~ +50
Operating Humidity %: 20 ~ 80
