Technical Specification

Features:
  • Make: Hanwha Techwin America
  • Previously known as: Samsung
  • Model code: SID-450
  • Series: SID Series
  • Chip Inch Size: 1/3
Read more
Additional info:

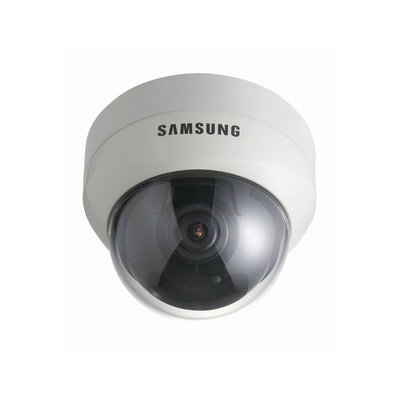

The SID-450, Hanwha Techwin's 3-axis colour dome camera provides ease of installation.  This camera is flexible to install with its 3-axis camera construction, which makes the camera wall or slope mountable.

Read more
Make Hanwha Techwin America
Manufacturer Hanwha Techwin America
Previously known as Samsung
Model code SID-450
Series SID Series
Chip Inch Size 1/3
Colour Type Colour / Monochrome
Resolution TVL 530
Sensitivity lux 0.002
Dome Type Variable Focus
Digital (DSP) Yes
Indoor/Outdoor Indoor
Mount Type Ceiling, Wall
Electrical Specifications Voltage: 12 V DC
Power Consumption: 2.5 W
Focal length 3.0 ~ 9.0
Rotation Angleso 160 tilt, 350 pan
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1/60
S/ N (Signal/ Noise) Ratio dB 50
Synchronisation Internal, Line-lock
Signal Mode PAL, NTSC
Video Output 1.0 Vp-p, 75 Ohms
Zoom Ratio x3
Physical Specifications Dimensions mm: 130 (Dia) x 100
Weight g: 570
Environmental Specifications Operating Temp oC: -10 ~ +50
Operating Humidity %: 30 ~ 80
Additional info

The SID-450, Hanwha Techwin's 3-axis colour dome camera provides ease of installation.  This camera is flexible to install with its 3-axis camera construction, which makes the camera wall or slope mountable.
