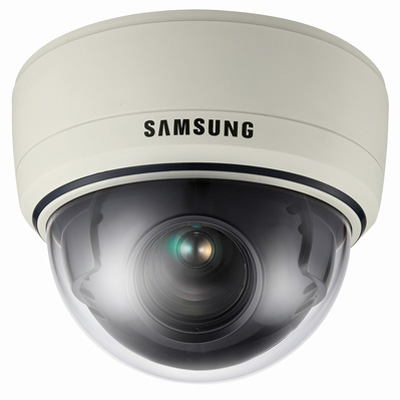

Hanwha Techwin America Techwin SID-370 high resolution interior dome camera with 37 x zoom

Technical Specification

Features:
  • Make: Hanwha Techwin America
  • Previously known as: Samsung
  • Model code: SID-370
  • Series: SID Series
  • Chip Inch Size: 1/4
Read more
Additional info:

Hanwha Techwin SID-370 is a high resolution interior dome camera with 37 x zoom.

Read more
Make Hanwha Techwin America
Manufacturer Hanwha Techwin America
Previously known as Samsung
Model code SID-370
Series SID Series
Chip Inch Size 1/4
Colour Type Colour / Monochrome
Resolution TVL 680
Sensitivity lux 0.001
Dome Type Variable Focus
Pan Speed o/ sec 0 ~ 340
Tilt Speed o/ sec 0 ~ 146
Digital (DSP) Yes
Indoor/Outdoor Indoor/Outdoor
Mount Type Ceiling, Wall
Electrical Specifications Voltage: 12 V DC
Power Consumption: 4.5 W
Focal length 3.5 ~ 129.5
Rotation Angleso 0 ~ 340
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1/60 ~ 1/120,000
S/ N (Signal/ Noise) Ratio dB 50
Synchronisation Internal
Signal Mode PAL, NTSC
Built-in IR LED Yes
Video Output 1.0 Vp-p, 75 Ohms
Zoom Ratio x37
Physical Specifications Dimensions mm: 161 x 124
Weight g: 900
Environmental Specifications Operating Temp oC: -10 ~ +50
Operating Humidity %: 20 ~ 80
Additional info Hanwha Techwin SID-370 is a high resolution interior dome camera with 37 x zoom.
