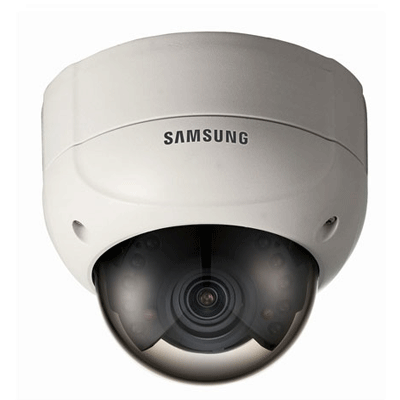

Hanwha Techwin America SCV-2080R dome camera with OSD menu access via coaxial telemetry

Please note: this is a discontinued product.

Go to Replacement product

Features:

Additional info:

Hanwha Techwin SCV-2080R dome camera with OSD menu access via coaxial telemetry.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Hanwha Vision
Manufacturer	Hanwha Vision Europe (formerly Hanwha Techwin Europe)
Previously known as	Samsung
Category	CCTV>Dome cameras
Model code	SCV-2080R
Chip Inch Size	1/3 inch
Colour Type	Colour / Monochrome
Resolution TVL	700
Dome Type	Variable Focus
Sensitivity lux	0.0003 lux
Digital (DSP)	Yes
Indoor/Outdoor	Indoor/Outdoor
Electrical Specifications	Voltage: 12 V DC / 24 V AC Power Consumption: 5.5 W
Focal length	2.8 ~ 10
Rotation Angles^o	0 ~ 340 pan, 0 ~ 146 tilt
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/60
S/ N (Signal/ Noise) Ratio dB	52
Synchronisation	Internal / Line-lock
Built-in IR LED	Yes
Video Output	1 Vp-p, 75 Ohms
Zoom Ratio	x3.6
Network Properties	Interface: RS-485, Pelco-C (Coaxitron)
Physical Specifications	Dimensions mm: 148 x 126 Weight g: 1,300
Environmental Specifications	Operating Temp ^oC: -10 ~ +50 Operating Humidity %: 20 ~ 80 Protection: IP66, Vandal Resistant
Additional info	Hanwha Techwin SCV-2080R dome camera with OSD menu access via coaxial telemetry.
