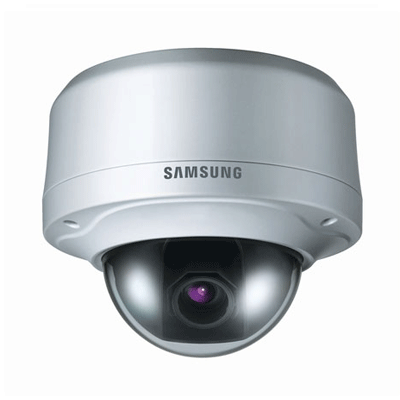

Hanwha Techwin America SCV-2060 dome camera with dual power
Technical Specification
| Make | Hanwha Vision |
|---|---|
| Manufacturer | Hanwha Vision Europe (formerly Hanwha Techwin Europe) |
| Previously known as | Samsung |
| Category | CCTV>Dome cameras |
| Model code | SCV-2060 |
| Chip Inch Size | 1/3 inch |
| Colour Type | Colour / Monochrome |
| Resolution TVL | 700 |
| Sensitivity lux | 0.001 @ F1.2 lux |
| Dome Type | Continuous Rotation |
| Indoor/Outdoor | Indoor/Outdoor |
| Electrical Specifications |
Voltage: 12 V DC / 24 V AC Power Consumption: 3.8 W |
| Focal length | 2.5 ~ 6 |
| Rotation Angleso | 0 ~ 355 pan, 0 ~ 90 tilt |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter range | 1/60 ~ 1/120,000 |
| S/ N (Signal/ Noise) Ratio dB | 52 |
| Synchronisation | Internal |
| Video Output | 1 Vp-p, 75 Ohms |
| Zoom Ratio | x3.6 |
| Network Properties | Interface: RS-485, Pelco-C (Coaxitron) |
| Physical Specifications |
Dimensions mm: 160 x 134.5 Weight g: 1,280 |
| Environmental Specifications |
Operating Temp oC: -50 ~ +50 Operating Humidity %: 0 ~ 90 Protection: IP66, Vandal Resistant |
| Additional info | Hanwha Techwin SCV-2060 dome camera with dual power. |
