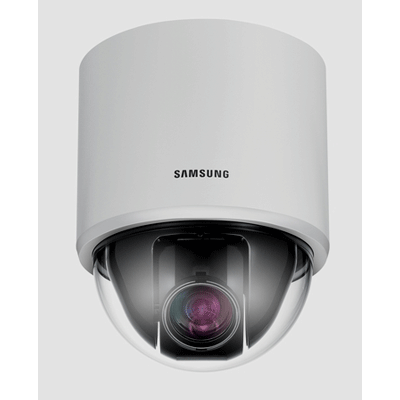

Hanwha Techwin America SCP-3430 dome camera with WDR backlight compensation

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Hanwha Techwin America SCP-3430 dome camera with WDR backlight compensation

Features:

Make: Hanwha Vision
Previously known as: Samsung
Model code: SCP-3430
Chip Inch Size: 1/4 inch
Colour Type: Colour / Monochrome

Additional info:

Hanwha Techwin SCP-3430 is a dome camera with powerful 43x optical zoom, high resolution of 600TV lines, WDR backlight compensation, VPS coaxial control support and intelligent video analytics.

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Hanwha Vision
Manufacturer	Hanwha Vision Europe (formerly Hanwha Techwin Europe)
Previously known as	Samsung
Category	CCTV>Dome cameras
Model code	SCP-3430
Chip Inch Size	1/4 inch
Colour Type	Colour / Monochrome
Resolution TVL	600
Sensitivity lux	0.001 lux
Dome Type	Continuous Rotation
Pan Speed ^o/ sec	600 ^o/ sec pan speed
Tilt Speed ^o/ sec	600 ^o/ sec tilt speed
Indoor/Outdoor	Indoor/Outdoor
Electrical Specifications	Voltage: 24 V AC Power Consumption: 11 W
Focal length	3.2 ~ 138.5
Rotation Angles^o	360 pan, -6 ~ +186 tilt
Presets	512
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/100 ~ 1/10,000
S/ N (Signal/ Noise) Ratio dB	52
Synchronisation	Internal / Line-lock
Video Output	1 Vp-p, 75 Ohms
Zoom Ratio	x43 (optical), x16 (digital)
Network Properties	Interface: RS-485, Pelco-C (Coaxitron)
Physical Specifications	Dimensions mm: 178 x 219 Weight g: 2,000
Environmental Specifications	Operating Temp ^oC: -10 ~ +50 Operating Humidity %: 0 ~ 90 Protection: IP66, Vandal Resistant
Additional info	Hanwha Techwin SCP-3430 is a dome camera with powerful 43x optical zoom, high resolution of 600TV lines, WDR backlight compensation, VPS coaxial control support and intelligent video analytics.
