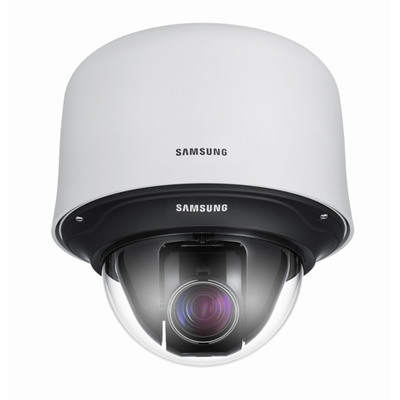

Hanwha Techwin America Techwin SCP-3250N high resolution WDR PTZ dome camera with 600 TVL

Technical Specification

Features:
  • Make: Hanwha Techwin America
  • Previously known as: Samsung
  • Model code: SCP-3250N
  • Chip Inch Size: 1/4
  • Colour Type: Colour / Monochrome
Read more
Additional info:

Read more
Make Hanwha Techwin America
Manufacturer Hanwha Techwin America
Previously known as Samsung
Model code SCP-3250N
Chip Inch Size 1/4
Colour Type Colour / Monochrome
Resolution TVL 600
Sensitivity lux 0.005
Dome Type PTZ
Indoor/Outdoor Indoor/Outdoor
Electrical Specifications Voltage: 24 V AC
Power Consumption: 16 W
Focal length 3.6 ~ 91
Rotation Angleso 360 pan, -6 ~ +186 tilt
Presets 512
Back Light Compensation Yes
Auto Gain Control Yes
S/ N (Signal/ Noise) Ratio dB 52
Synchronisation Internal, Line-lock
Signal Mode NTSC
Video Output 1 Vp-p, CVBS, 75 Ohms
Zoom Ratio x10
Network Properties Interface: RS-485 or RS-232C
Physical Specifications Dimensions mm: 228 (Dia) x 256
Weight g: 3 kg
Environmental Specifications Operating Temp oC: 0 ~ 50
Operating Humidity %: 30 ~ 80
Protection: IP66
