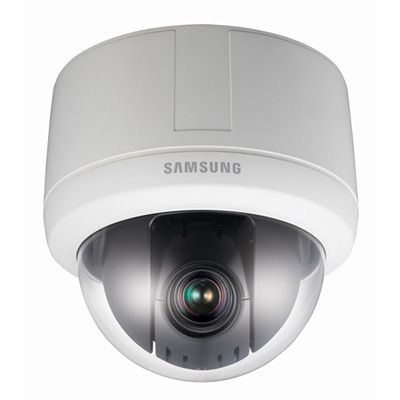

Hanwha Techwin America SCP-3120P WDR PTZ dome camera with 600 TVL

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Hanwha Techwin America SCP-3120P WDR PTZ dome camera with 600 TVL

Features:

Make: Hanwha Vision
Previously known as: Samsung
Model code: SCP-3120P
Chip Inch Size: 1/4 inch
Colour Type: True Day / Night

Additional info:

The SCP-3120/3120V/3120VH PTZ dome cameras feature 12x optical zoom, clear color images at 600TV lines resolution. With high-speed pan and tilt operations at 650?per second, these cameras capture broad areas quickly. Especially, with SCP-3120V/3120VH's vandal-resistant body, these offer unparalleled durability and exceptional anti-shock protection. In addition, these models include a WDR, VPS, Coaxial control and intelligent video analytics function for vivid images and user convenience.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Hanwha Vision
Manufacturer	Hanwha Vision Europe (formerly Hanwha Techwin Europe)
Previously known as	Samsung
Category	CCTV>Dome cameras
Model code	SCP-3120P
Chip Inch Size	1/4 inch
Colour Type	True Day / Night
Resolution TVL	600
Sensitivity lux	0.7 lux
Dome Type	PTZ
Pan Speed ^o/ sec	650 ^o/ sec pan speed
Digital (DSP)	Yes
Tilt Speed ^o/ sec	650 ^o/ sec tilt speed
Indoor/Outdoor	Indoor
Mount Type	Surface mount
Electrical Specifications	Voltage: 24 V AC
Focal length	3.6 ~ 44.3
Presets	255
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/60 ~ 1/100,000
S/ N (Signal/ Noise) Ratio dB	50
Synchronisation	Internal, Line-lock
Signal Mode	PAL/NTSC
Zoom Ratio	x12
Physical Specifications	Dimensions mm: 154 x 150
Environmental Specifications	Operating Temp ^oC: -10 ~ +50 Operating Humidity %: 0 ~ 90
Additional info	The SCP-3120/3120V/3120VH PTZ dome cameras feature 12x optical zoom, clear color images at 600TV lines resolution. With high-speed pan and tilt operations at 650?per second, these cameras capture broad areas quickly. Especially, with SCP-3120V/3120VH's vandal-resistant body, these offer unparalleled durability and exceptional anti-shock protection. In addition, these models include a WDR, VPS, Coaxial control and intelligent video analytics function for vivid images and user convenience.
