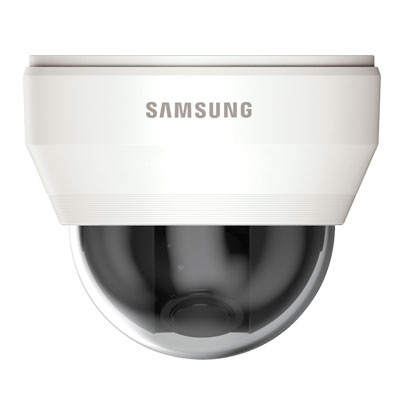

Hanwha Techwin America SCD-5083 950 TVL day & night dome camera

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Hanwha Techwin America SCD-5083 950 TVL day & night dome camera

Features:

Make: Hanwha Vision
Previously known as: Samsung
Model code: SCD-5083
Chip Inch Size: 1/3 inch
Colour Type: Colour / Monochrome

Additional info:

Hanwha Techwin SCD-5083 is a day/night dome camera with 950 TV line resolution. The camera's video analytics include fixed move, fence, tracking, motion detection, counting and tampering.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Hanwha Vision
Manufacturer	Hanwha Vision Europe (formerly Hanwha Techwin Europe)
Previously known as	Samsung
Category	CCTV>Dome cameras
Model code	SCD-5083
Chip Inch Size	1/3 inch
Colour Type	Colour / Monochrome
Resolution TVL	950
Dome Type	Static
Sensitivity lux	0.001 lux
Indoor/Outdoor	Indoor
Digital (DSP)	Yes
Electrical Specifications	Voltage: 24 V AC Power Consumption: 4 W
Focal length	2.8 ~ 10mm
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/60 ~ 1/120,000s
S/ N (Signal/ Noise) Ratio dB	52
Synchronisation	Internal, Line-lock
Video Output	1.0 Vp-p / 75 Ohms composite
Zoom Ratio	x16
Physical Specifications	Dimensions mm: 120 x 102 Weight g: 395
Environmental Specifications	Operating Temp ^oC: -10 ~ +50 C (14 ~ 131 F) Operating Humidity %: < 90
Additional info	Hanwha Techwin SCD-5083 is a day/night dome camera with 950 TV line resolution. The camera's video analytics include fixed move, fence, tracking, motion detection, counting and tampering.
