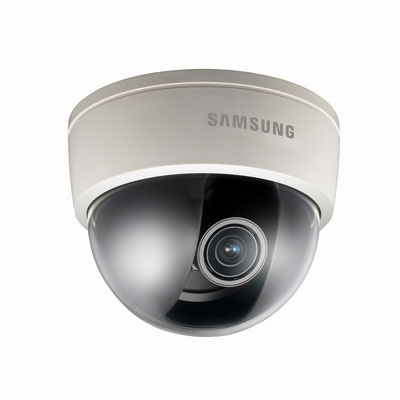

Hanwha Techwin America SCD-2082 700 TV lines varifocal dome camera

Technical Specification

Features:
  • Make: Hanwha Techwin America
  • Previously known as: Samsung
  • Model code: SCD-2082
  • Chip Inch Size: 1/3
  • Colour Type: Colour / Monochrome
Read more
Additional info:

Hanwha Techwin SCD-2082 analogue vari-focal dome camera features SSNRIII, software day & night and defog.

Read more
Make Hanwha Techwin America
Manufacturer Hanwha Techwin America
Previously known as Samsung
Model code SCD-2082
Chip Inch Size 1/3
Colour Type Colour / Monochrome
Resolution TVL 700
Sensitivity lux 0.1
Digital (DSP) Yes
Electrical Specifications Voltage: 24 V AC
Power Consumption: 2.5 W
Focal length 2.8 ~ 10mm
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1/60 ~ 1/120,000s
S/ N (Signal/ Noise) Ratio dB 52
Synchronisation Internal, Line-lock
Video Output CVBS : 1.0 Vp-p / 75 Ohms composite
Zoom Ratio x3.6
Physical Specifications Dimensions mm: 116 x 93
Weight g: 313
Environmental Specifications Operating Temp oC: -10 ~ +50 C (14 ~ 131 F)
Operating Humidity %: < 90
Additional info Hanwha Techwin SCD-2082 analogue vari-focal dome camera features SSNRIII, software day & night and defog.
