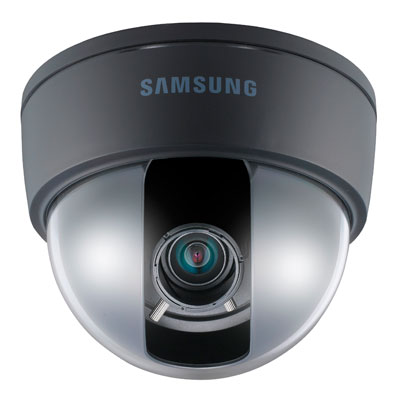

Hanwha Techwin America SCD-2080N day & night varifocal dome camera

Technical Specification

Features:
  • Make: Hanwha Techwin America
  • Previously known as: Samsung
  • Model code: SCD-2080N
  • Chip Inch Size: 1/3
  • Colour Type: Colour / Monochrome
Read more
Make Hanwha Techwin America
Manufacturer Hanwha Techwin America
Previously known as Samsung
Model code SCD-2080N
Chip Inch Size 1/3
Colour Type Colour / Monochrome
Resolution TVL 600
Dome Type PTZ
Sensitivity lux 0.0003
Indoor/Outdoor Indoor/Outdoor
Electrical Specifications Voltage: 12 V DC
Power Consumption: 3.5 W
Focal length 2.8 ~ 10 mm
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1/60 ~ 1/120K sec
S/ N (Signal/ Noise) Ratio dB 52
Synchronisation Internal / Line lock
Signal Mode NTSC
Video Output CVBS : 1.0Vp-p / 75
Zoom Ratio x3.6
Physical Specifications Dimensions mm: 116 x 93
Weight g: 345
Environmental Specifications Operating Temp oC: -10 ~ +50
Operating Humidity %: 30 ~ 80
