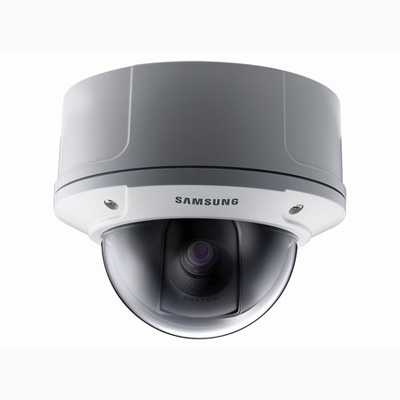

Hanwha Techwin America Techwin SCC-C9302 1/4-inch dome with 480 TVL

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Hanwha Techwin America Techwin SCC-C9302 1/4-inch dome with 480 TVL

Features:

Make: Hanwha Vision
Previously known as: Samsung
Model code: SCC-C9302
Chip Inch Size: 1/4 inch
Colour Type: Colour / Monochrome

Additional info:

1/4" Ex-View CCD 410K/470K. Horizontal resolution: 480 TV Lines. Minimum scene illumination: 0.002(color)/0.0002(B/W) Lux. 120X Zoom Lens (12X optical, 10X digital). Wide Dynamic Range(WDR): NTSC(128x), PAL(160x). Day/Night Function. Motion Detection (Zones and sensitivity level set by user). Alarm Input: 1Ch/ Alarm Output: 1Ch. Privacy Protection Allows up to 8 Privacy Zones.

Contact manufacturer Contact manufacturer

Make	Hanwha Vision
Manufacturer	Hanwha Vision Europe (formerly Hanwha Techwin Europe)
Previously known as	Samsung
Category	CCTV>Dome cameras
Model code	SCC-C9302
Chip Inch Size	1/4 inch
Colour Type	Colour / Monochrome
Resolution TVL	480
Digital (DSP)	Yes
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
S/ N (Signal/ Noise) Ratio dB	52
Synchronisation	Internal
Environmental Specifications	Protection: IP66
Additional info	1/4" Ex-View CCD 410K/470K. Horizontal resolution: 480 TV Lines. Minimum scene illumination: 0.002(color)/0.0002(B/W) Lux. 120X Zoom Lens (12X optical, 10X digital). Wide Dynamic Range(WDR): NTSC(128x), PAL(160x). Day/Night Function. Motion Detection (Zones and sensitivity level set by user). Alarm Input: 1Ch/ Alarm Output: 1Ch. Privacy Protection Allows up to 8 Privacy Zones.
