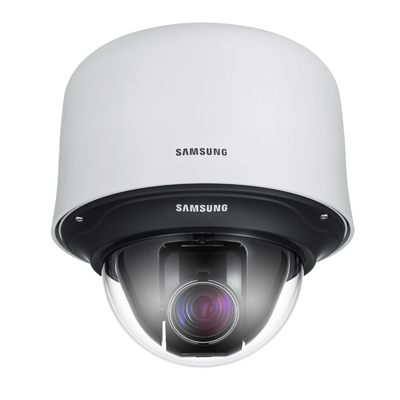

Hanwha Techwin America SCC-C7453P 43x optical zoom high SmartDome camera

Please note: this is a discontinued product.

Go to Replacement product

Features:

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Hanwha Vision
Manufacturer	Hanwha Vision Europe (formerly Hanwha Techwin Europe)
Previously known as	Samsung
Category	CCTV>Dome cameras
Model code	SCC-C7453P
Chip Inch Size	1/4 inch
Colour Type	Colour
Resolution TVL	600
Sensitivity lux	0.00007 lux
Dome Type	Continuous Rotation
Pan Speed ^o/ sec	600 ^o/ sec pan speed
Indoor/Outdoor	Indoor/Outdoor
Tilt Speed ^o/ sec	600 ^o/ sec tilt speed
Electrical Specifications	Voltage: 24 V AC Power Consumption: 11 W
Focal length	3.2 ~ 138.5
Rotation Angles^o	360 pan, -6 ~ +186 tilt
Presets	512
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/100 ~ 1/10,000
S/ N (Signal/ Noise) Ratio dB	52
Synchronisation	Internal / Line-lock
Signal Mode	NTSC, PAL
Video Output	1 Vp-p, 75 Ohms
Zoom Ratio	x16
Network Properties	Interface: RS-485
Physical Specifications	Dimensions mm: 215 x 270 Weight g: 3,000
Environmental Specifications	Operating Temp ^oC: -50 ~ +50 Operating Humidity %: 0 ~ 90
