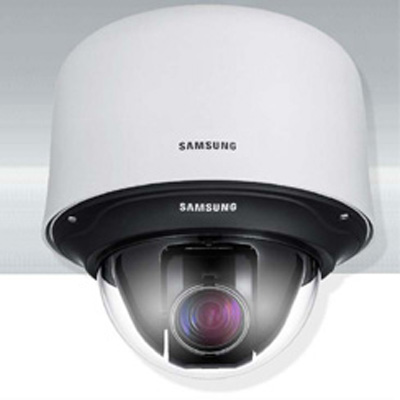

Hanwha Techwin America SCC-C7439P x34 optical zoom high speed dome camera

Please note: this is a discontinued product.

Go to Replacement product

Features:

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Hanwha Vision
Manufacturer	Hanwha Vision Europe (formerly Hanwha Techwin Europe)
Previously known as	Samsung
Category	CCTV>Dome cameras
Model code	SCC-C7439P
Chip Inch Size	1/4 inch
Colour Type	Colour
Resolution TVL	600
Sensitivity lux	0.00007 lux
Dome Type	Continuous Rotation
Pan Speed ^o/ sec	600 ^o/ sec pan speed
Indoor/Outdoor	Indoor/Outdoor
Tilt Speed ^o/ sec	600 ^o/ sec tilt speed
Electrical Specifications	Voltage: 24 V AC Power Consumption: 16 W
Focal length	3.4 ~ 115.6
Rotation Angles^o	360 pan, -6 ~ +186 tilt
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
S/ N (Signal/ Noise) Ratio dB	52
Synchronisation	Internal / Line-lock
Video Output	1 Vp-p, 75 Ohms
Zoom Ratio	x34
Physical Specifications	Dimensions mm: 228 x 256 Weight g: 3 kg
Environmental Specifications	Operating Temp ^oC: -50 ~ +50 Operating Humidity %: 0 ~ 90
